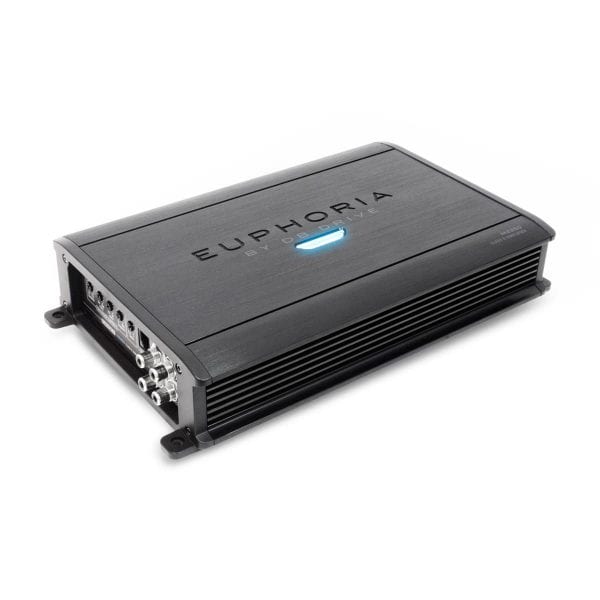

Euphoria M2250 Out of Stock

Monoblock  Class D Technology Amplifier / 2250 Watts

SPECIFICATIONS:

  • Dynamic Power 2250 watts
  • 1 x 2250 watts @ 1 ohm mono
  • 1 x 1125 watts @ 2 ohms stereo
  • Power Supply Input Voltage: 11VDC to 15VDC
  • THD (100Hz @ 1Ω): 0.04%
  • Bandwidth (-3 dB): 18- 350Hz
  • Damping Factor (100Hz @ 4Ω): 126
  • S/N ratio ( as weighted @ 1 Volt): 99db
  • Input Sensitivity: .20MV – 7.0V RMS
  • Minimum Load Impedance: 1Ω
  • Input: Pre in RCA
  • Output: Pre out RCA Full Range
  • Mono Low Pass filter slope: 12dB
  • Low Pass filter range: 40Hz ~ 200Hz
  • Sub – Sonic Filter slope: 12dB
  • Sub – Sonic Filter Range: 10Hz ~ 40Hz
  • Bass Boost @45 Hz: 0 ~ 12dB

SPECIFICATIONS:

  • Length: 10.8” / 274mm
  • Width: 7” / 178mm
  • Height: 2.28” / 58mm

FEATURES:

  • Mono Class D Technology
  • 1 Ω Mono load Capability
  • Audiophile Grade tiffany RCA connectors
  • Full Range RCA output connections
  • Variable Low-pass crossover filter
  • Variable Sub-sonic Filter
  • Remote Dash Bass Control
  • 4 gauge Power cable input connectors
  • Double Sided Circuit tablet
  • Compatible with any 2Ω Subwoofer load
