DB Drive A7 3500L.1

$4,500.00

Call for Price

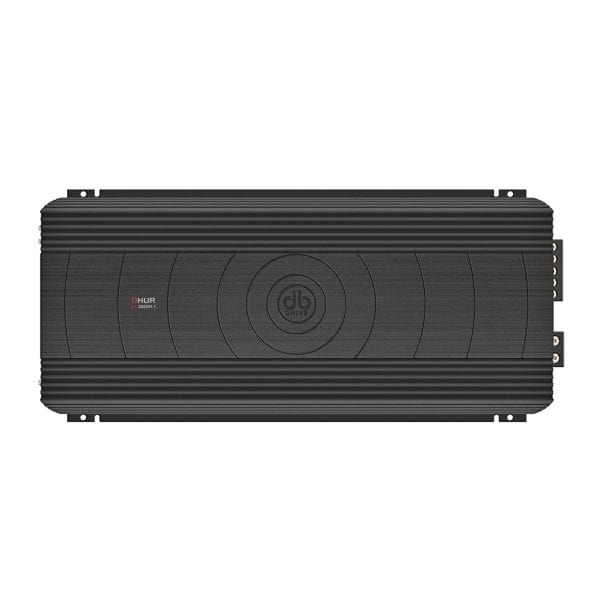

Class D Mono Block Amplifier / 3500 Watts

Category: Tags: ,
SPECIFICATIONS
Rated @14 Volts
  • 1 x 3,500 Watts @ 1Ω
  • 1 x 1,800 Watts @ 2Ω
  • 1 x 900 Watts @ 4Ω
Frequency Response       10Hz – 250Hz
Variable Phase Shift Control       0 – 180
Variable Subsonic Filter       10Hz – 50Hz
Variable Low Pass Filter       35Hz – 250Hz
Signal to Noise Ratio       95
Damping Factor       100<
  • 1Ω Mono Capability
  • Continuously Variable Low level RCA Inputs
  • DRIVESINK – Heat Management System
  • Continuously Variable 24dB per Octave Low Pass X-Over
  • Continuously Variable 24 dB Per Octave Subsonic Filter
  • Variable Phase Shift Control (0-180)
  • Continuously Variable Bass Boost @ 45Hz
  • Internal Multi-Link Module For Easy Multi-Linking of Two Like Amplifiers
  • Unregulated DC-DC PWM Power Supply
  • Speaker Short Circuit Protection
  • RCA Pre-Amp Outputs for Easy Daisy Chaining of Multiple Amplifiers
  • Large Gauge Power Input Terminals
  • Bass Remote Included
  • DIMENSIONS
    Length 22.38″ / 569 mm
    Width 10.25″ / 260 mm
    Height 2.5″ / 64 mm
