DB Drive EXM10N

$1,589.00

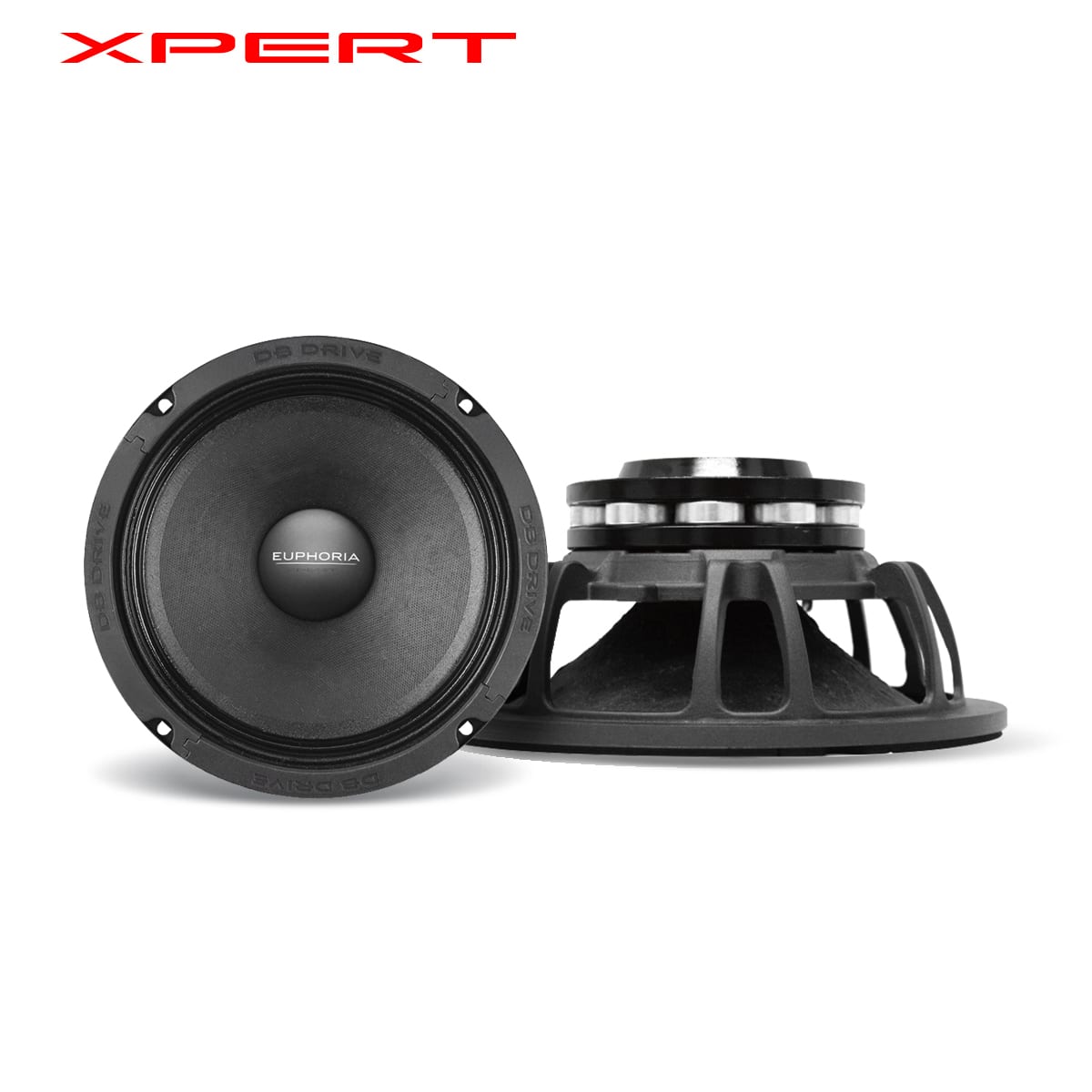

XPERT Midrange Speaker 10″ 400W RMS 4 Ohm

Category: Tags: ,

Features:

  • 2.5″ (63.5mm) Voice Coil
  • Neodymium 10 Piece Radially Equalized Magnet Assembly
  • IP52 Rated Paper Cone With Treated Cloth Surround
  • Die-Cast Aluminum Basket With Radial Venting
  • Sold as Single
T/S PARAMETERS
Resonant Frequency (fs) 71.7Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 2.2
Electrical Quality Factor (Qes) 0.44
Total Quality Factor (Qts) 0.37
Compliance Equivalent Volume (Vas) 38.1L
Mechanical Compliance (Cms) 0.22 mm/N
Efficiency (1W/1M) 102.1 dB
ADDITIONAL SPECS
Nominal Impedance 4Ω
Power Handling 400 Watts
Dynamic Wattage 800 Watts
Sensitivity (1w/1m) 102.1 dB
Voice Coil Diameter 2.5″ (63.5mm)



DIMENSIONS
Mounting Depth: 3.9″ (99mm)
Mounting Diameter: 9.06″ (230mm)
