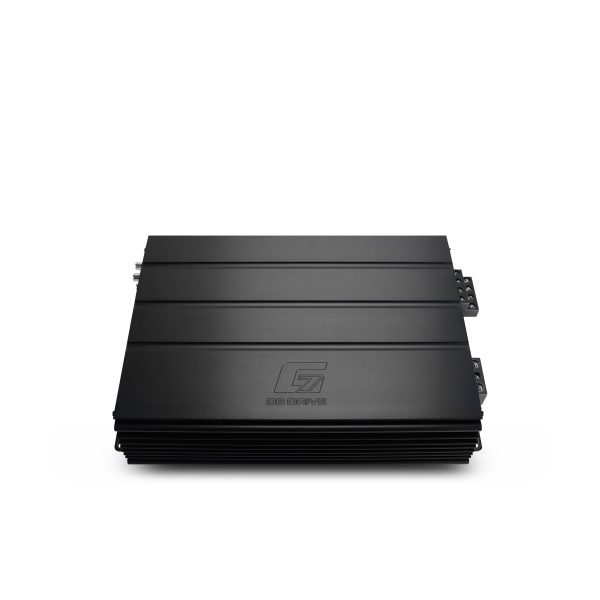

DB Drive G7 500.4
Call for Price
500 Watt 4 Channel Class D Amplifer
Features:
- ATC – Audiophile Grade Tiffany RCA Connectors
- ACT – Adaptive Crossover Technology
- High efficiency Class D Technology
- Direct Connect Speaker Terminals
- 4 Gauge Power Wire Inputs
- APC – Audio Protection Circuit
- SESI – Signal Evaluation Status Indicator
- CHM – Collective Heat Management
| GENERAL SPECIFICATIONS | |
|---|---|
| Rated Power @ 14.4 Volts | |
| 4 x 500 Watts @ 4Ω | |
| 4 x 1000 Watts @ 2Ω | |
| 2 x 2000 Watts @ 4Ω Bridged |
| SPECIFICATIONS | |
|---|---|
| Working Voltage | 9-16 Volts |
| Frequency Response | 1OHz – 25KHz |
| Signal to Noise Ratio | <90dB |
| Damping Factor | 90dB< |
| Low Level Input | 6V – 0.2V |
| ACT – Variable Crossover | HP/BP/LP |
| Ch 1 /2 High Pass Filter Variable | 20Hz – 8KHz |
| Ch 1 /2 Low Pass Filter Variable | 50Hz – 8KHz |
| Ch 3/4 High Pass Filter Variable | 20Hz – 8KHz |
| Ch 3/4 Low Pass Filter Variable | 50Hz – 8KHz |
| Minimum working Impedance | 2 Ohms |
| Length (A) | 13.38 in (340mm) |
| Width (B) | 9.13 in (232mm) |
| Height (C) | 2.53 in (64.5mm) |
