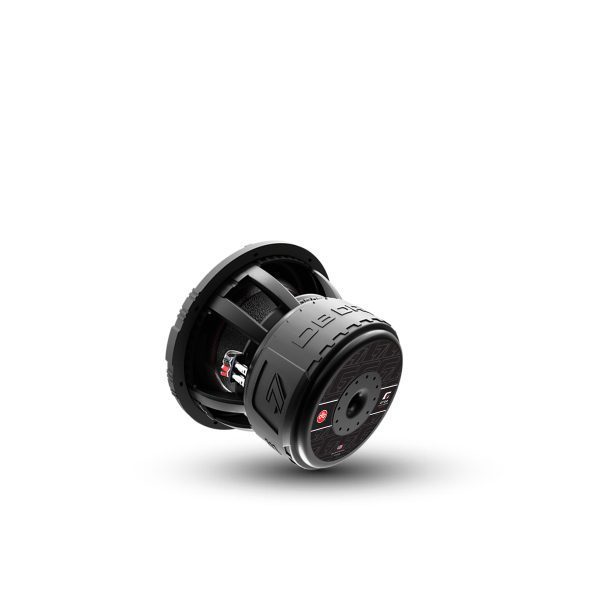

DB Drive G7 8.4

$2,700.00

COMPETITION GRADE SUBWOOFERS

8″ Dual 4 Ohm 1250Rms

Category: Tag:

Features:

  • High excursion foam surround
  • True Carbon fiber dust cap
  • Custom Die cast Aluminum Basket
  • Triple Layer Progressive dampeners
  • Large Gauge push speaker terminals
  • 3-inch-high temperature 4-layer voice coil
  • Custom Rubber protective magnet band
  • Triple stacked Y35 ferrite oxide magnet

General Specifications:

Structure 8″ (20.3cm) Woofer
Dynamic Power Handling 2500 Watts
Nominal Power Handling 1250 Watts
Impedance Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs) 50.135Hz
D.C. Voice Coil Resistance (Re) 2 x 4Ω
Mechanical Quality Factor (Qms) 2.158
Electrical Quality Factor (Qes) 0.776
Total Quality Factor (Qts) 0.571
Equivalent Air Volume to Cms (Vas) 3.829 L
Mass of Diaphragm/Coil (Mms) 192.525 g
Force Factor (Bl) 21.660
Sound Pressure Level (SPL) 79.8 dB
Outside Diameter (A) 9.17″ (233mm)
Cutout Diameter (B) 7.48″ (190mm)
Mounting Depth (C) 7.38″ (187.45mm)
