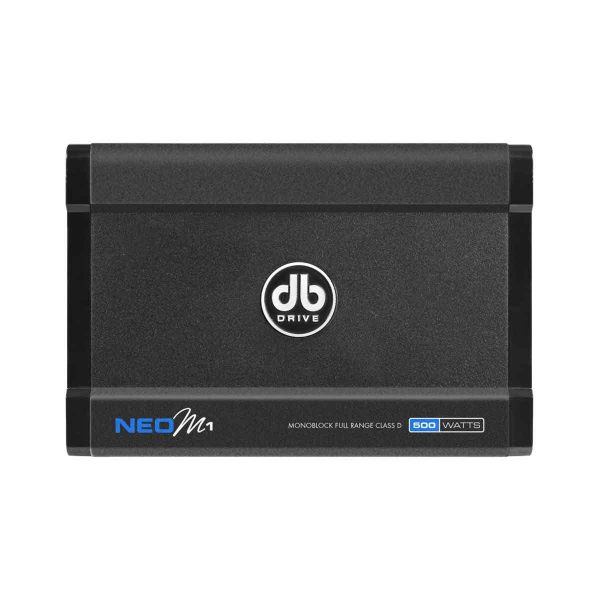

DB Drive NEOM1
$1,446.00
Monoblock Class D Amplifier
Features:
- Mono Class D Technology
- 2Ω Mono load Capability
- Audiophile Grade Nickel Plated RCA connectors
- Variable 12db Low-pass crossover
- Selectable 12dB Bass Boost
- Variable Sub-sonic Filter
- Marine Grade Conformal Coated Double Sided PCB
- Compatible with any 4/2Ω Subwoofer
| GENERAL SPECIFICATIONS |
| Rated Power @ 14.4 Volts |
|
| Dynamic Power Handling |
1 x 250 Watts @ 4Ω |
|
1 x 500 Watts @ 2Ω |
| PARAMETERS |
| THD (100Hz @ 1Ω) |
0.04% |
| Bandwidth (-3 dB) |
18Hz ~ 22KHz |
| Damping Factor (1KHz @ 4Ω) |
100 |
| S/N ratio (as weighted @ 1 Volt) |
99db |
| Input Sensitivity |
0.20V ~ 9.0V RMS |
| Minimum Load Impedance |
2Ω |
| Low-Pass Filter Range |
50Hz ~ 150Hz |
| Sub-Sonic Filter Range |
15Hz ~ 50Hz |
