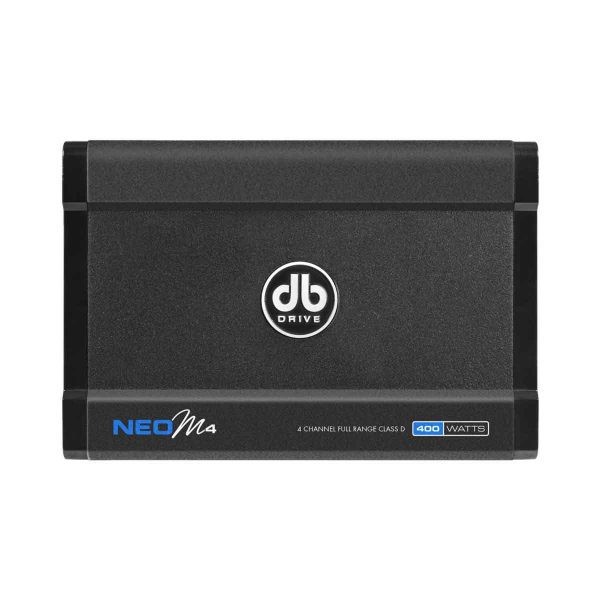

DB Drive NEOM4
$1,519.00
4 Channel Class D Full Range
Features:
- 4 Channel Class D Full Range Technology
- 2Ω Stereo load Capability
- Audiophile Grade Nickel Plated RCA connectors
- 12db High-Pass crossover filter
- Marine Grade Conformal Coated Double Sided PCB
- Compatible with any 4/2Ω Loudspeaker
| GENERAL SPECIFICATIONS | |
|---|---|
| Rated Power @ 14.4 Volts | |
| Dynamic Power Handling | 4 x 50 Watts @ 4Ω |
| 4 x 100 Watts @ 2Ω |
| PARAMETERS | |
|---|---|
| THD (100Hz @ 1?) | 0.04% |
| Bandwidth (-3 dB) | 18Hz ~ 22KHz |
| Damping Factor (1KHz @ 4?) | 100 |
| S/N ratio (as weighted @ 1 Volt) | 99db |
| Input Sensitivity | 0.20V ~ 9.0V RMS |
| Minimum Load Impedance | 2Ω |
| Low-Pass Filter Range | 50Hz ~ 150Hz |
| Sub-Sonic Filter Range | 15Hz ~ 50Hz |
