DB Drive P7M 10C
$745.00

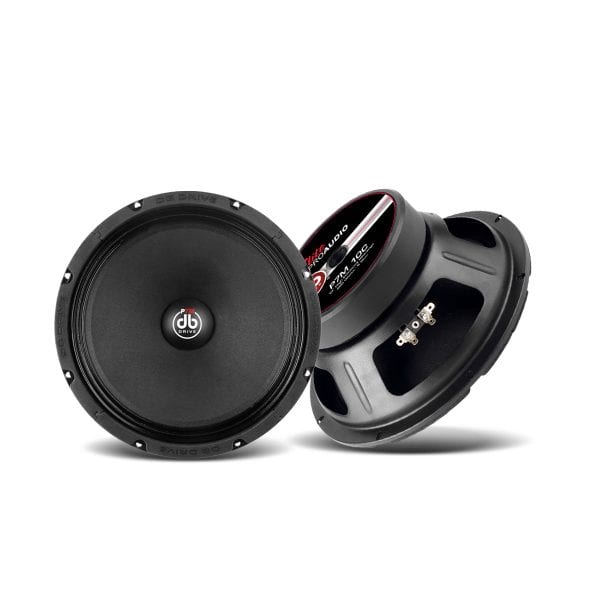

10″ PRO Audio Midrange / 400 W
FEATURES:
- High Efficiency ProAudio Mid Range
- Paper Composite Cone
- Cloth Edge Surround
- 2” (50.8mm) High Temperature Voice Coil
- Steel Stamped Basket
- Barium Ferrite Magnet
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 72Hz |
| D.C. Voice Coil Resistance (Re) | 5.6 |
| Mechanical Quality Factor (Qms) | 12.17 |
| Electrical Quality Factor (Qes) | 0.65 |
| Total Quality Factor (Qts) | 0.61 |
| Compliance Equivalent Volume (Vas) | 35.5L |
| BL Product (BL) | 9.7 |
| Diaphragm Mass inc. Airload (Mms) | 24.0 gr |
| ADDITIONAL SPECS | |
|---|---|
| Basket Diameter | 10.07” (256mm) |
| Max Power | 400 Watts |
| Nominal Power | 300 Watts |
| Impedance | 8 Ω |
| Resonance | 72Hz |
| Sensitivity | 101.3 |
