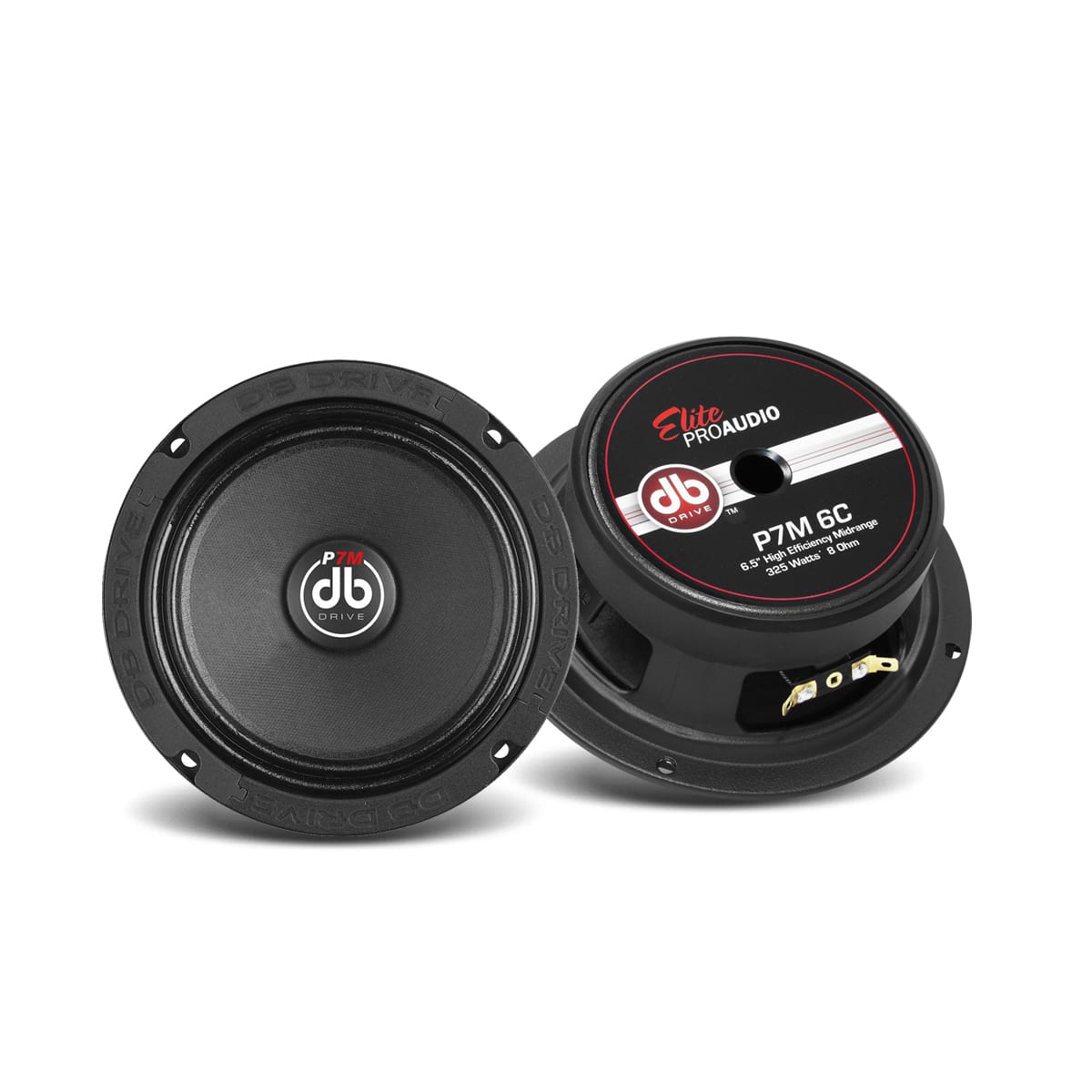

DB Drive P7M 6C
June 19, 2020

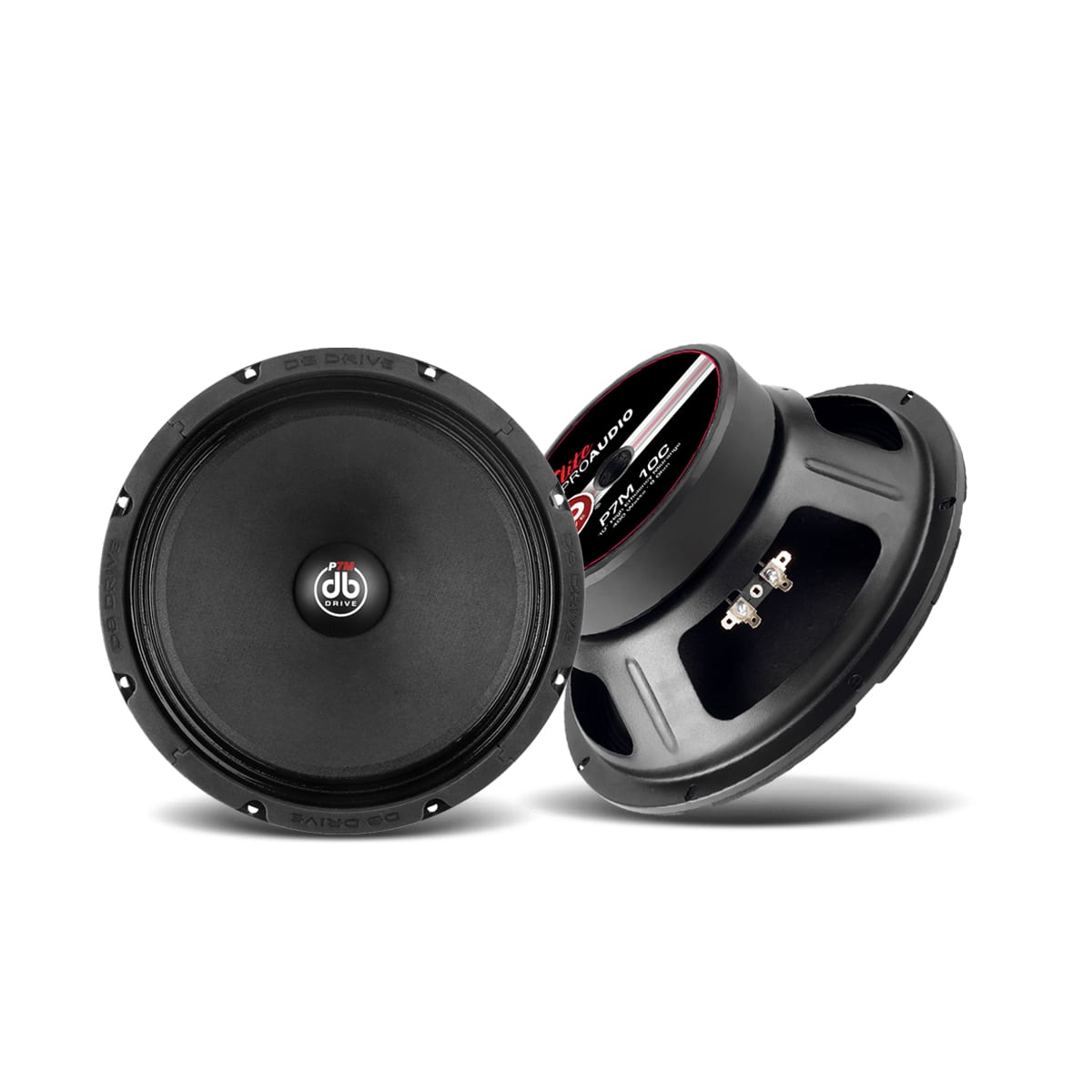

DB Drive P7M 10C
June 19, 2020

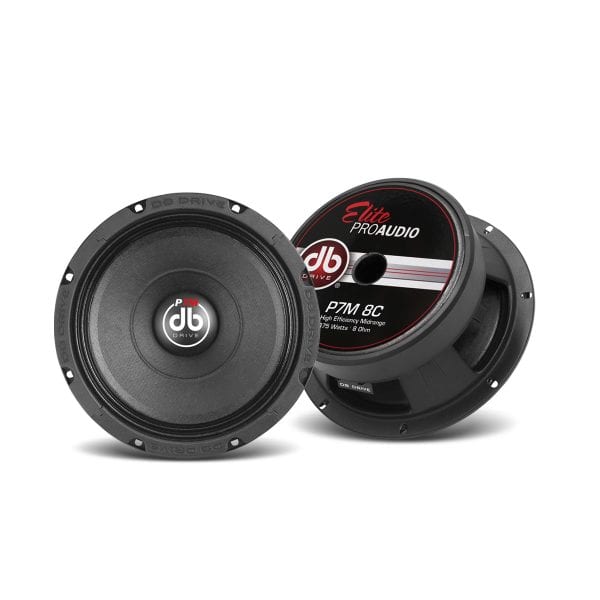

DB Drive P7M 8C
$700.00
8″ PRO Audio Midrange / 375 W
FEATURES:
- High Efficiency ProAudio Mid Range
- Paper Composite Cone
- Cloth Edge Surround
- 2” (50.8mm) High Temperature Voice Coil
- Steel Stamped Basket
- Barium Ferrite Magnet
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 85.2Hz |
| D.C. Voice Coil Resistance (Re) | 5.8 |
| Mechanical Quality Factor (Qms) | 2.14 |
| Electrical Quality Factor (Qes) | 0.50 |
| Total Quality Factor (Qts) | 0.41 |
| Compliance Equivalent Volume (Vas) | 13.0L |
| BL Product (BL) | 10.3 |
| Diaphragm Mass inc. Airload (Mms) | 17.2 gr |
| ADDITIONAL SPECS | |
|---|---|
| Basket Diameter | 8” (203mm) |
| Max Power | 375 Watts |
| Nominal Power | 250 Watts |
| Impedance | 8 Ω |
| Resonance | 85.2Hz |
| Sensitivity | 98.2 |
Only logged in customers who have purchased this product may leave a review.
Related products
-

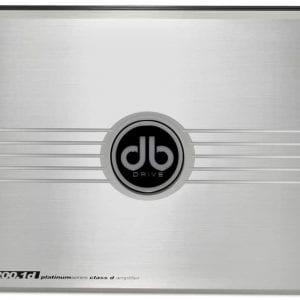

DB Drive A5 1200.1D
