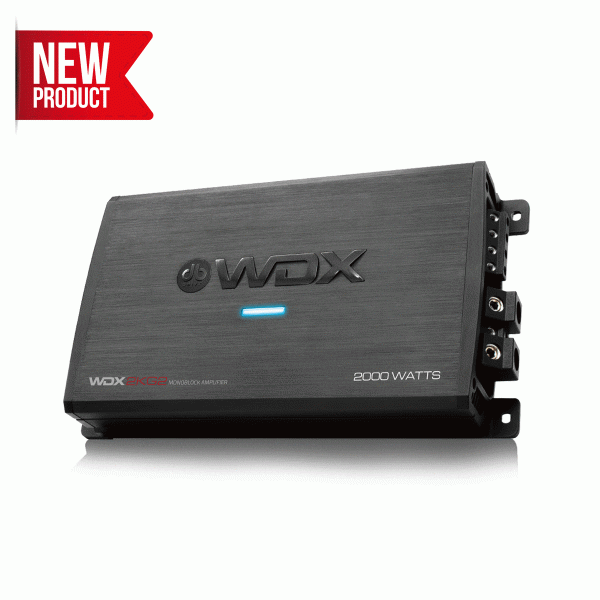

DB Drive WDX 2KG2

$2,239.00

Class D Monoblock Amplifier / 2000 Watts

Category: Tags: , ,

Breaking Car Audio World Records (dbdrive.net)

The DB Drive WDX amplifiers includes built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for all mono amplifiers. For added low frequency performance the amplifiers are equipped with a selectable6dB-12dB bass boost @ 45Hz

  • 1Ω Mono Capability
  • Blue LED POWER-ON Indicator
  • Variable Low Level RCA Input
  • Variable 12DB Per Octave Low-Pass X-Over
  • Direct- Connect Connection Terminals
  • Buffered Pre-amp input
  • Selectable 6dB-12dB Boost @ 45Hz
  • DRIVESINK Heat Management System
  • Unregulated DB-DC PWM Power Supply
  • Bass Remote Included
GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
Dynamic Power Handling 1 x 2000 Watts @ 1Ω
1 x 1000 Watts @ 2Ω1 x 500 Watts @ 4Ω



PARAMETERS
Frequency Response 10Hz ~ 250Hz
S/N Ratio < 95 dB
Variable Phase Shift Control 0 ~ 180
Variable Subsonic Filter 10Hz ~ 50Hz
Variable Low Pass Filter 50Hz ~ 220Hz
Damping Factor 100m<
