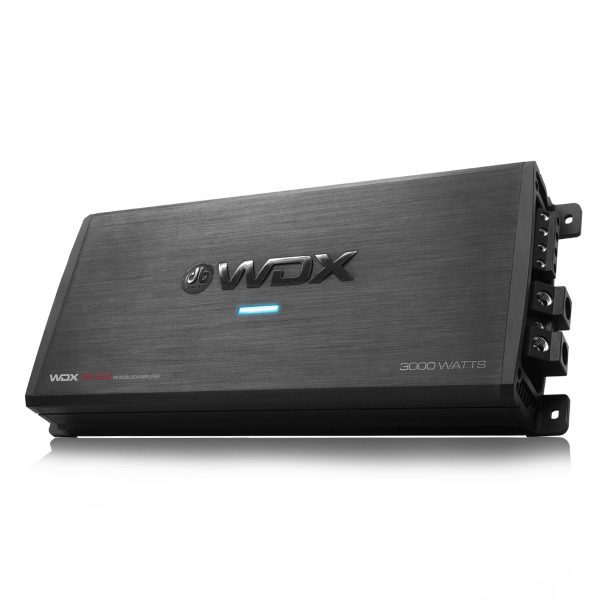

DB Drive WDX 3KG2

$2,655.00

Class D Monoblock Amplifier / 3000 Watts



Category: Tags: ,

Breaking Car Audio World Records (dbdrive.net)

SPECIFICATIONS
Rated @14 Volts
  • 1 x 3,000 Watts @ 1Ω
  • 1 x 1,500 Watts @ 2Ω
  • 1 x 750 Watts @ 4Ω
Frequency Response       10Hz – 250Hz
Variable Phase Shift Control       0 – 180
Variable Subsonic Filter       10Hz – 50Hz
Variable Low Pass Filter       50Hz – 220Hz
Signal to Noise Ratio       95
Damping Factor       100<
  • 1Ω Mono Capability
  • Blue LED POWER-ON Indicator
  • Variable Low Level RCA Input
  • Variable 12DB Per Octave Low-Pass X-Over
  • Direct- Connect Connection Terminals
  • Buffered Pre-amp input
  • Selectable 6dB-12dB Boost @ 45Hz
  • DRIVESINK Heat Management System
  • Unregulated DB-DC PWM Power Supply
  • Speaker Short Circuit Protection
  • Bass Remote Included
DIMENSIONS
Length 15.24″ / 387 mm
Width 7.08″ / 180 mm
Height 2.25″ / 57.15 mm
