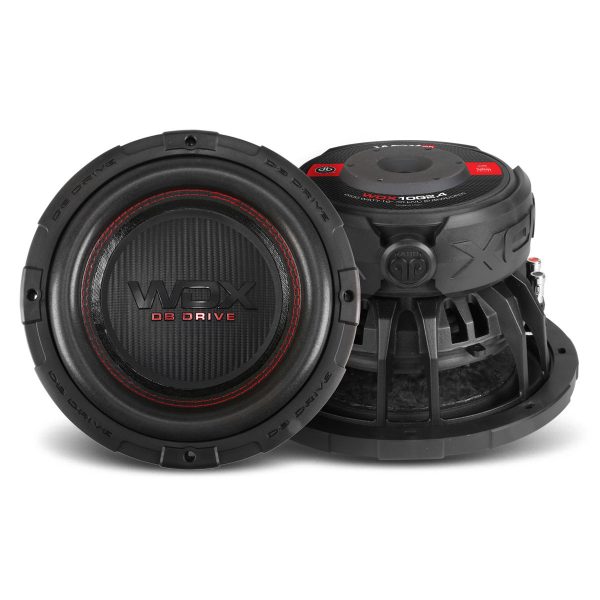

DB Drive WDX10G2.4
$1,609.00
10-Inch 2,200-Watt Dual-Voice-Coil Subwoofer
DETAILS
- 2,200 watts max
- 1,100 watts nominal
- Frequency response: 15 Hz to 250 Hz
- SPL: 83.3 dB
- 3 in., 4-layer dual-4-ohm anodized aluminum high-temperature voice coil
- Non pressed paper cone
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large-gauge compression speaker terminals
| GENERAL SPECIFICATIONS |
| Structure |
10″ (16.5cm) Woofer |
| Dynamic Power Handling |
2200 Watts |
| Nominal Power Handling |
1100 Watts |
| Impedance |
Dual 4Ω Voice Coil |
| PARAMETERS |
| Resonant Frequency (fs) |
46.1Hz |
| D.C. Voice Coil Resistance (Re) |
2 x 3.2Ω |
| Mechanical Quality Factor (Qms) |
5.48 |
| Electrical Quality Factor (Qes) |
0.62 |
| Total Quality Factor (Qts) |
0.56 |
| Equivalent Air Volume to Cms (Vas) |
8.9 L |
| Mass of Diaphragm/Coil (Mms) |
203.9 g |
| Force Factor (Bl) |
24.7 |
| Sound Pressure Level (SPL) |
83.3dB |
