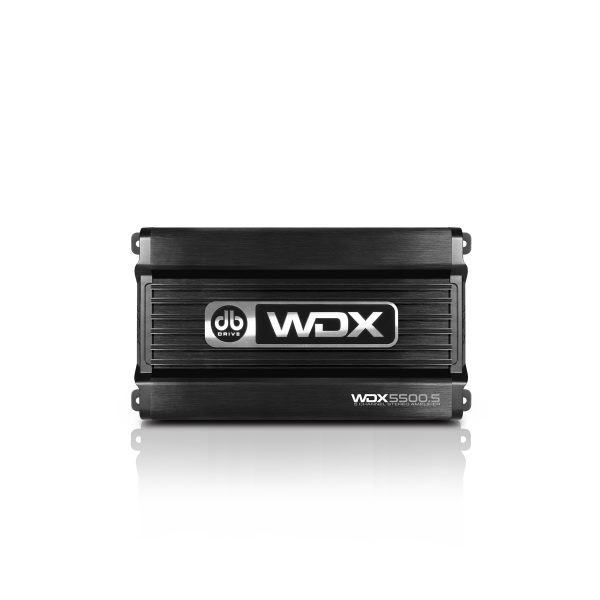

DB Drive WDX5500.5
$2,499.00
5 Channel Stereo Amplifier
Overview:
- CLASS “D” CIRCUITRY
- Direct Connect Speaker Terminals
- 4 Gauge Power Wire Input
- CHM- Collective Heat Management
- ACT – Adaptive Crossover Technology
- SESI – Signal Evaluation Status Indicator
- APC – Audio Protection Circuit
- Included Remote Level Control
| GENERAL SPECIFICATIONS |
| Rated Power @ 14.4 Volts |
|
|
4 x 200 Watts @ 4Ω + 500 Watts @ 2Ω |
|
4 x 400 Watts @ 2Ω + 500 Watts @ 2Ω |
|
|
| PARAMETERS |
| Frequency Response |
20Hz ~ 22KHz |
| S/N Ratio |
<105 dB |
| Low Level Input |
6V – 0.2V |
| Independent Selectable X-Over F/R |
HPF / LPF /FULL |
| Variable High Pass Filter (12 dB Slope) |
40Hz ~ 300Hz |
| Variable Low Pass Filter (12 dB Slope) |
40Hz ~ 300Hz |
| Variable Subsonic Filter (12 dB Slope) |
0Hz ~ 25KHz |
| Bass Equalizer |
0dB – 12dB |
| Working Voltage |
12-15 Volts |
| Length (A) |
10.63″ / (270mm) |
| Width (B) |
5.50″ / (139.7mm) |
| Height (C) |
2.38″ / (60.5mm) |
