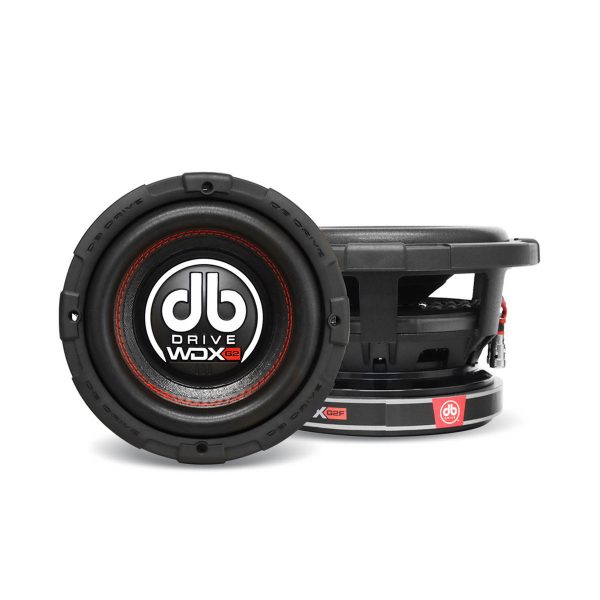

DB Drive WDX8G2F-4
$1,547.00
8″ Shallow 4Ω DVC subwoofer / 700 W
Features:
- 2″ BASV high temperature voice coil
- Non-Pressed paper cone
- Double stitched foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Shallow Mounting Depth
| GENERAL SPECIFICATIONS |
| Structure |
8″ (20.32cm) Woofer |
| Dynamic Power Handling |
700 Watts |
| Nominal Power Handling |
350 Watts |
| Impedance |
Dual 4Ω Voice Coil |
| PARAMETERS |
| Resonant Frequency (fs) |
40.082Hz |
| D.C. Voice Coil Resistance (Re) |
6.16Ω |
| Mechanical Quality Factor (Qms) |
3.047 |
| Electrical Quality Factor (Qes) |
0.589 |
| Total Quality Factor (Qts) |
0.493 |
| Equivalent Air Volume to Cms (Vas) |
8.876 L |
| Mass of Diaphragm/Coil (Mms) |
101.97 g |
| Force Factor (Bl) |
16.391 |
| Sound Pressure Level (SPL) |
81.7dB |
