Euphoria EWXB12D2/4
$1,969.00

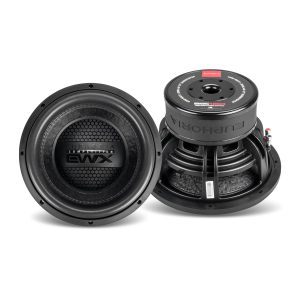

Blackout Edition Subwoofer (12″ – 1000W RMS – Dual 2 /4 Ohm)
Features:
- 3″ High-temperature voice coil
- 145 oz. ceramic ferrite magnet
- High-grade Low Carbon steel on top and bottom plate
- Designed to optimize SPL performance
- High excursion spider designed
- 1.5″ high roll foam surround
- Large gauge push button speaker terminals
- Dual 4 ohm voice coils
| Outside Diameter (A) |
12.68″ (322mm) |
| Cutout Diameter (B) |
6.02″ (153mm) |
| Mounting Depth (C) |
11.26″ (286mm) |
| GENERAL SPECIFICATIONS |
| Structure |
12″ (30.48cm) Woofer |
| Dynamic Power Handling |
2500 Watts |
| Nominal Power Handling |
1000 Watts |
| Impedance |
Dual 4Ω Voice Coil |
| PARAMETERS |
| Resonant Frequency (fs) |
41.415Hz |
| D.C. Voice Coil Resistance (Re) |
3.6Ω + 3.6Ω |
| Mechanical Quality Factor (Qms) |
3.656 |
| Electrical Quality Factor (Qes) |
0.652 |
| Total Quality Factor (Qts) |
0.553 |
| Equivalent Air Volume to Cms (Vas) |
11.764 L |
| Mass of Diaphragm/Coil (Mms) |
247.161 g |
| Force Factor (Bl) |
25.156 N/A |
| Sound Pressure Level (SPL) |
83 dB |
