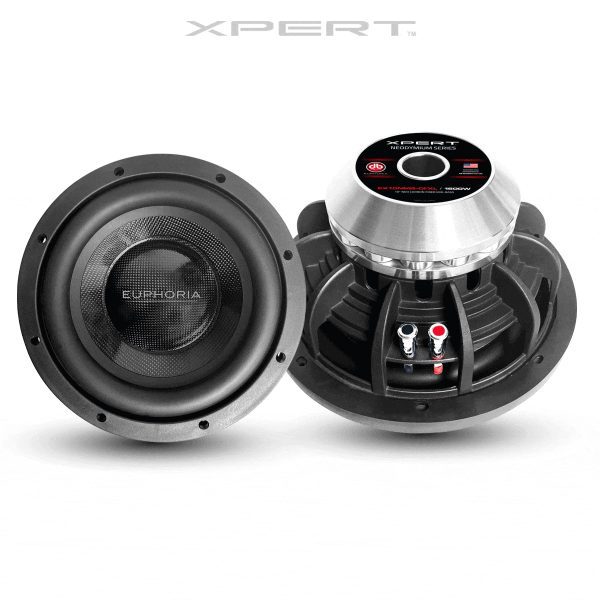

Euphoria EX10NMB-CFXL
$3,570.00
10″ Neo Carbon Fiber Midbass
Features:
- 3″ (63.5mm) Midrange Voice Coil
- Neodymium 15 Piece Radially Equalized Magnet Assembly
- Carbon Fiber Cone
- IP52 Rated Carbon fiber Cone with Treated Rubber Surround
- Die-Cast Aluminum Basket with Radial Venting
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 41Hz |
| D.C. Voice Coil Resistance (Re) | 3Ω |
| Mechanical Quality Factor (Qms) | 5.49 |
| Electrical Quality Factor (Qes) | 0.88 |
| Total Quality Factor (Qts) | 0.76 |
| Compliance Equivalent Volume (Vas) | 14.1L |
| Mechanical Compliance (Cms) | 0.09mm/N |
| Efficiency (1W/1M) | 92 dB |
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 3Ω |
| Power Handling | 800 Watts |
| Dynamic Wattage | 1600 Watts |
| Sensitivity (1w/1m) | 92 dB |
| Voice Coil Diameter | 3″ (76.2mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 4.68” / 119 mm |
| Cutout Diameter: | 9.26” / 235.32 mm |
