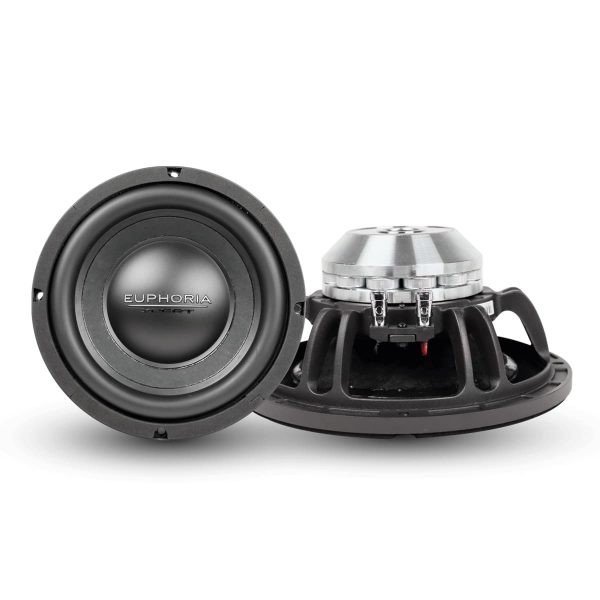

Euphoria EX10NMB – New
$2,402.00
10″ Neodymium Midbass
Features:
- 10″ Neodymium Series Mid Bass
- 2.5″ (63.5mm) Midrange Voice Coil
- Neodymium 12 Piece Radially Equalized Magnet Assembly
- IP52 Rated Paper Cone with Treated Rubber Surround
- Die-Cast Aluminum Basket with Radial Venting Dimensions
| T/S PARAMETERS |
| Resonant Frequency (fs) |
40Hz |
| D.C. Voice Coil Resistance (Re) |
3Ω |
| Mechanical Quality Factor (Qms) |
2.913 |
| Electrical Quality Factor (Qes) |
0.485 |
| Total Quality Factor (Qts) |
0.416 |
| Compliance Equivalent Volume (Vas) |
25.94L |
| Mechanical Compliance (Cms) |
167.735 mm/N |
| Efficiency (1W/1M) |
92 dB |
|
|
| ADDITIONAL SPECS |
| Nominal Impedance |
3Ω |
| Power Handling |
400 Watts |
| Dynamic Wattage |
800 Watts |
| Sensitivity (1w/1m) |
92 dB |
| Voice Coil Diameter |
2.5″ (63.5mm) |
| DIMENSIONS |
| Mounting Depth: |
4.27″ (108.5mm) |
| Mounting Diameter: |
9″ (230mm) |
