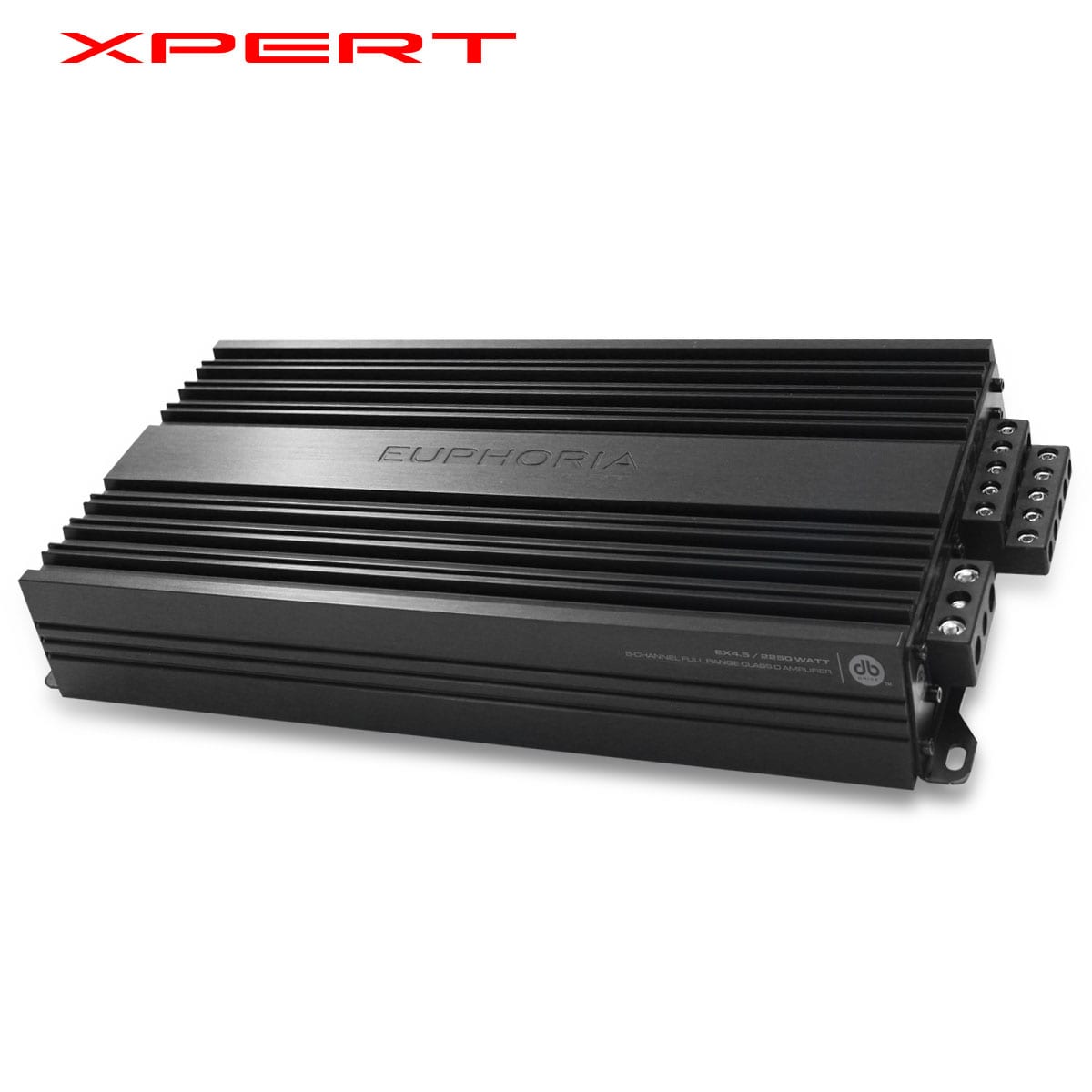

XPERT Powersports Amplifier (4 x 400W – Class D 4-Channel)

Category: Tags: ,

Features:

  • Audiophile Grade tiffany RCA connectors
  • Selectable Low-Pass, Band-Pass or High-Pass x-over
  • High efficiency full range Class D Technology
  • Direct Connect Speaker Terminals
  • Large Gauge Power Wire Inputs
  • Speaker Short Circuit Protection
  • Conformal coated moisture resistant PCB
Length (A) 11.81″ (299mm)
Width (B) 6.9″ (174mm)
Height (C) 2.11″ (53.6mm)



GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts 4 x 280 Watts @ 4Ω
Dynamic Power Handling 4 x 560 Watts @ 2Ω
2 x 560 Watts @ 4Ω Bridged
PARAMETERS
Frequency Response 20Hz – 30KHz
S/N Ratio < 100dB
Low Level Input 6V – 0.2V
High Pass Filter Variable 20Hz ~ 5KHz
Low Pass Filter Variable 50Hz ~ 5KHz
Working Voltage 10V ~ 16V
