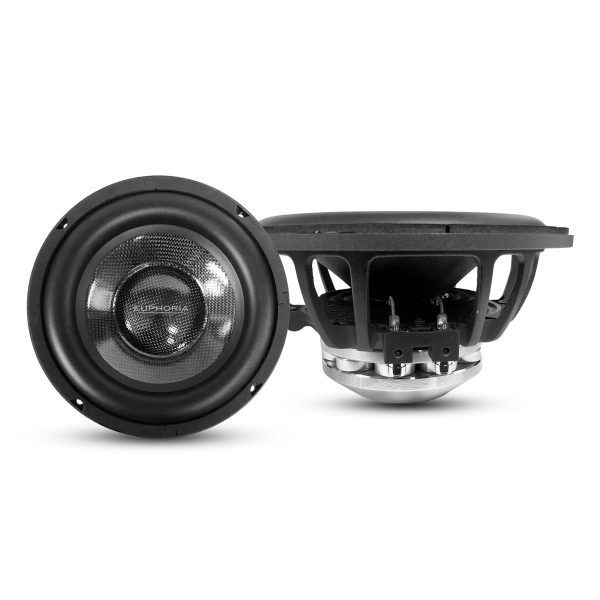

Euphoria EX8NMB-CF
$1,845.00
8″ Neo Carbon Fiber Midbass
Features:
- 8″ Neo Carbon Fiber MidBass
- 2″ (63.5mm) Midrange Voice Coil
- Neodymium 10 Piece Radially Equalized Magnet Assembly
- IP52 Rated Carbon Fiber Cone with Treated Rubber Surround
- Die-Cast Aluminum Basket with Radial Venting Dimensions
| T/S PARAMETERS |
| Resonant Frequency (fs) |
64Hz |
| D.C. Voice Coil Resistance (Re) |
3.2Ω |
| Mechanical Quality Factor (Qms) |
5.65 |
| Electrical Quality Factor (Qes) |
0.69 |
| Total Quality Factor (Qts) |
0.61 |
| Compliance Equivalent Volume (Vas) |
8.4L |
| Mechanical Compliance (Cms) |
0.13 mm/N |
| Efficiency (1W/1M) |
86.9 dB |
|
|
| ADDITIONAL SPECS |
| Nominal Impedance |
3Ω |
| Power Handling |
300 Watts |
| Dynamic Wattage |
600 Watts |
| Sensitivity (1w/1m) |
92 dB |
| Voice Coil Diameter |
2″ (50.8mm) |
| DIMENSIONS |
| Mounting Depth: |
3.77” / 96 mm |
| Mounting Diameter: |
7” / 180.32 mm |
