Euphoria EXM8N-CF

$1,744.00

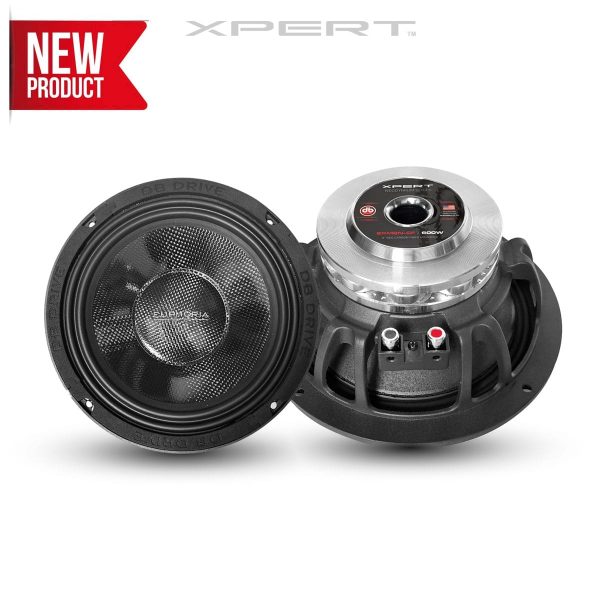

8″ NEO Carbon Fiber Midrange 300 Rms 4Ohm

Category: Tag:
FEATURES:
  • 8″ Neo Carbon Fiber midrange
  • 2.0″ (51mm) Midrange Voice Coil
  • 10 Neodymium Ring Magnet Assembly
  • IP65 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
  • Die-Cast Aluminum Basket with Radial Venting



T/S PARAMETERS
Resonant Frequency (fs) 51.4Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 7.53
Electrical Quality Factor (Qes) 0.39
Total Quality Factor (Qts) 0.37
Compliance Equivalent Volume (Vas) 18.2L
Mechanical Compliance (Cms) 0.27 mm/N
Sensitivity (1W/1M) 99.7 dB
ADDITIONAL SPECS
Nominal Impedance 4Ω
Power Handling 300 Watts
Dynamic Wattage 600 Watts
Sensitivity (1w/1m) 99.7 dB
Voice Coil Diameter 2.0″ (51mm)



DIMENSIONS
Mounting Depth: 3.46″ (88mm)
Mounting Diameter: 7.09″ (180mm)
