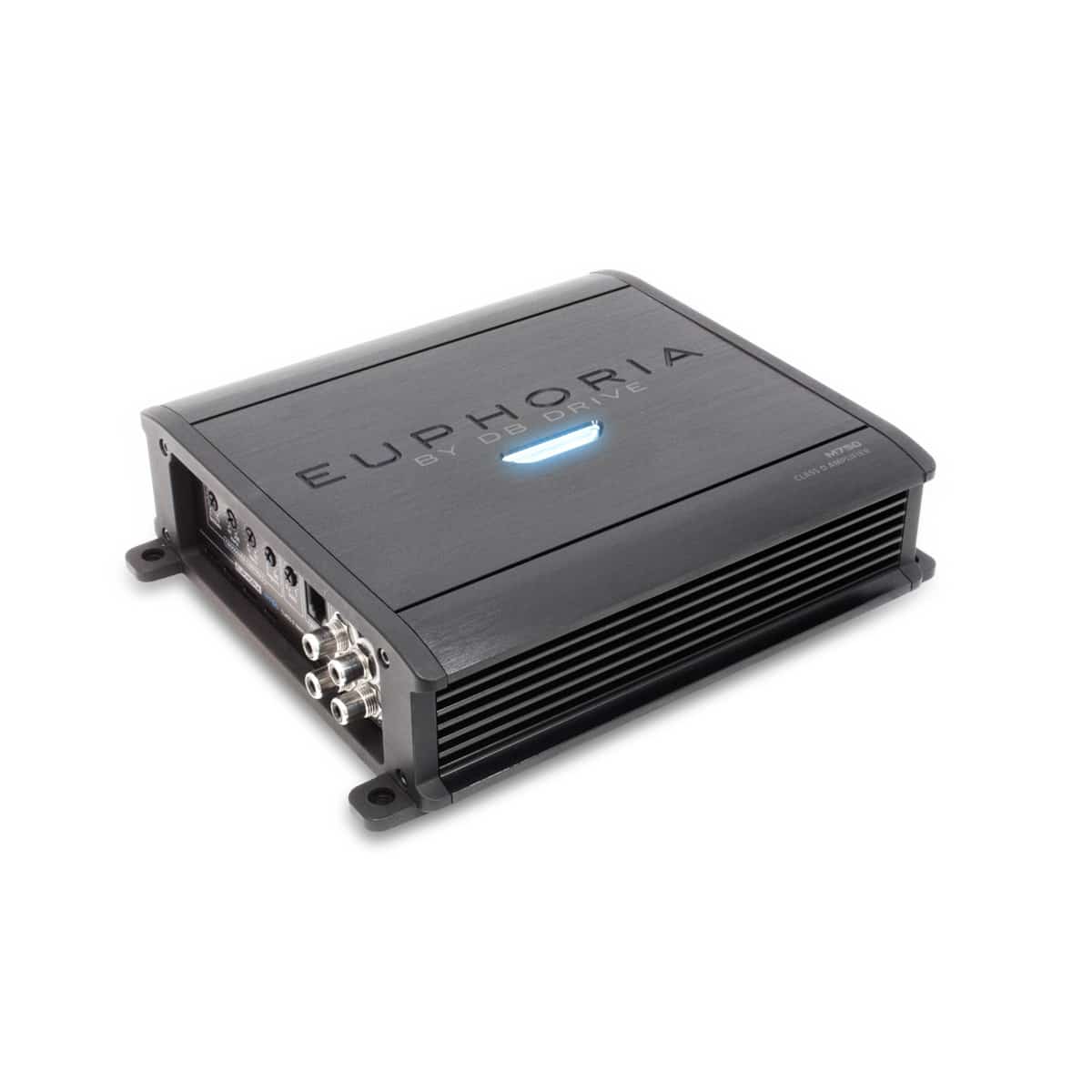

Euphoria F4100

SPECIFICATIONS:

• Dynamic Power 1200 watts
• 4 x 100 watts @ 4 ohm stereo
• 4 x 150 watts @ 2 ohm stereo
• 2 x 400 watts @ 2 ohm bridged
• Power Supply Input Voltage: 11VDC to 15VDC
• THD (100Hz @ 1Ω): 0.04%
• Bandwidth (-3 dB): 18Hz- 22KHz
• Damping Factor (100Hz @ 4Ω): 100
• S/N ratio ( as weighted @ 1 Volt): 99db
• Input Sensitivity: .20MV – 7.0V RMS
• Minimum Load Impedance: 2Ω
• Input: Pre in RCA
• Output: Pre out RCA Full Range
• Channel 1-2 filter slope: 12dB
• Channel 1-2 filter range: (FR = Un-filtered) (HP = 50Hz – 4KHz)
• Channel 3-4 filter slope: HP @ 12db St. , LP/BP @ 12dB St. or LP/BP
• Channel 3-4 filter range: (HP = 50Hz ~ 4KHz) (BP = 32Hz ~ 4KHz) (LP = 32Hz ~ 250Hz)

DIMENSIONS:

• Length: 10.8” / 274mm
• Width: 7” / 178mm
• Height: 2.28” / 58mm

FEATURES:

• 4 Channel Class A/B Full Range Technology
• 2 Ω Stereo load Capability
• Audiophile Grade tiffany RCA connectors
• Full Range RCA output connections
• Variable High-Pass , Band-Pass or Low-pass crossover filters
• Bridgable outputs @ 4Ω load
• Remote Dash Bass Control
• 4 gauge Power cable input connectors
• Double Sided Circuit tablet
• Compatible with any 4/2Ω Loudspeaker
