Euphoria MM1500.1

$2,537.00

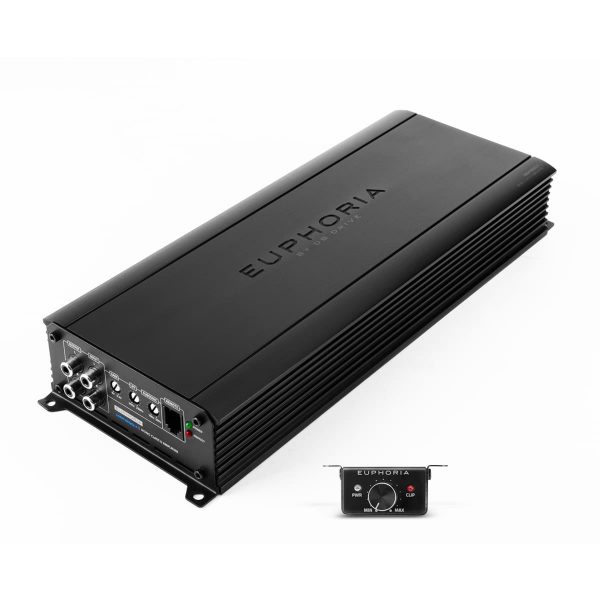

Euphoria Mini Amplifier (1500W Max  Class D Monoblock)

Category: Tags: ,

The MM1500.1 are equipped with a Selectable crossover network and a Variable slope subsonic filter.

  • 4 Layer Double Sided PCB
  • 4 Gauge Power Wire Input
  • Remote Bass Control Included
Length (A) 7.84″ (199.13mm)
Width (B) 4.72″ (119.88mm)
Height (C) 1.96″ (49.78mm)



GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts 1 x 1500 Watts @ 1Ω
Dynamic Power Handling 1 x 750 Watts @ 2Ω
Nominal Power Handling 1 x 325 Watts @ 4Ω
PARAMETERS
Frequency Response 10Hz – 250Hz
S/N Ratio < 85
Low Level Input 6V – 0.2V
Variable Low Pass Filter 35Hz ~ 250Hz
Variable Subsonic Filter 10Hz ~ 40Hz
Working Voltage 12V ~ 16V
