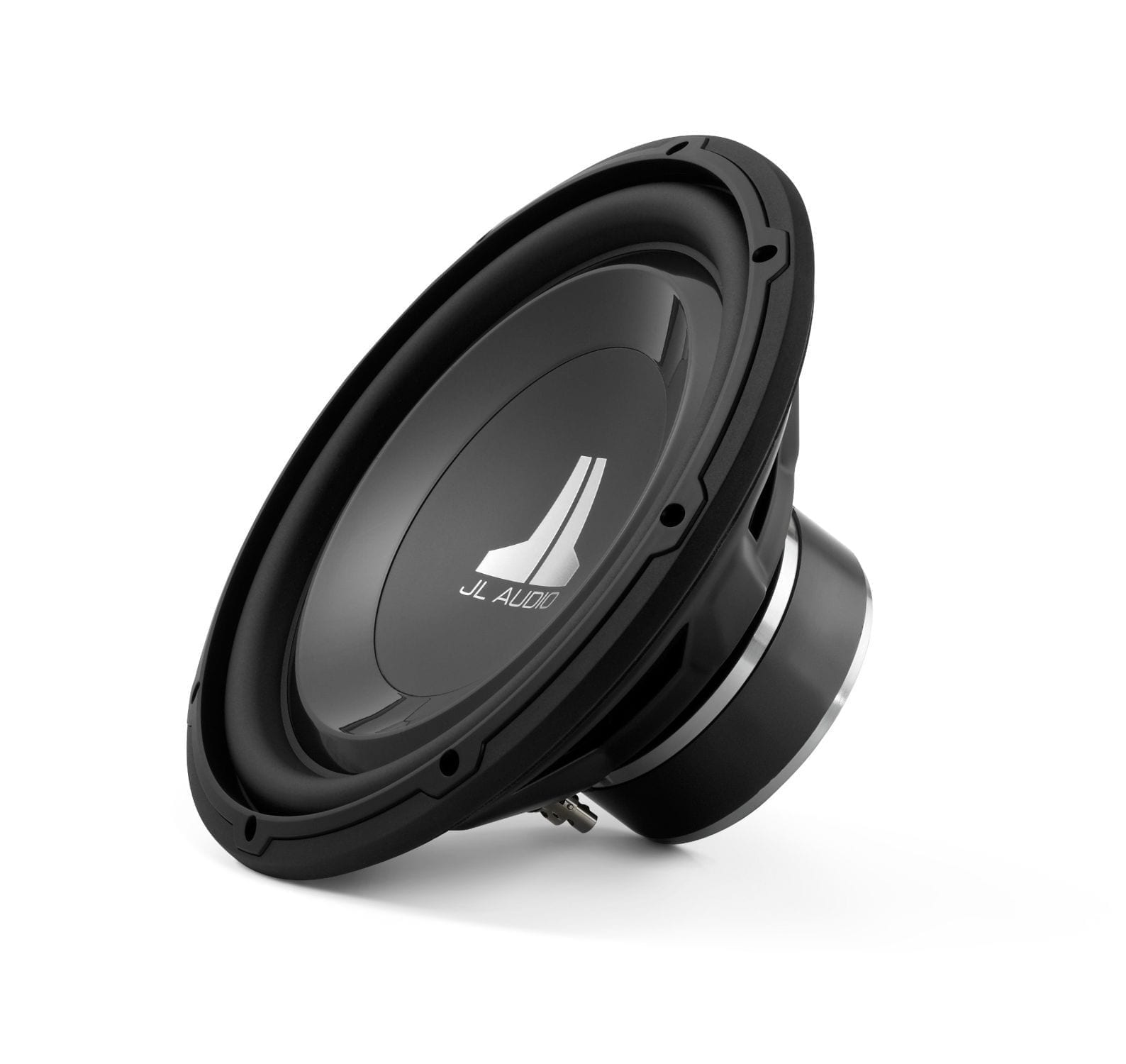

JL Audio 12W1v3-2/4
July 28, 2020

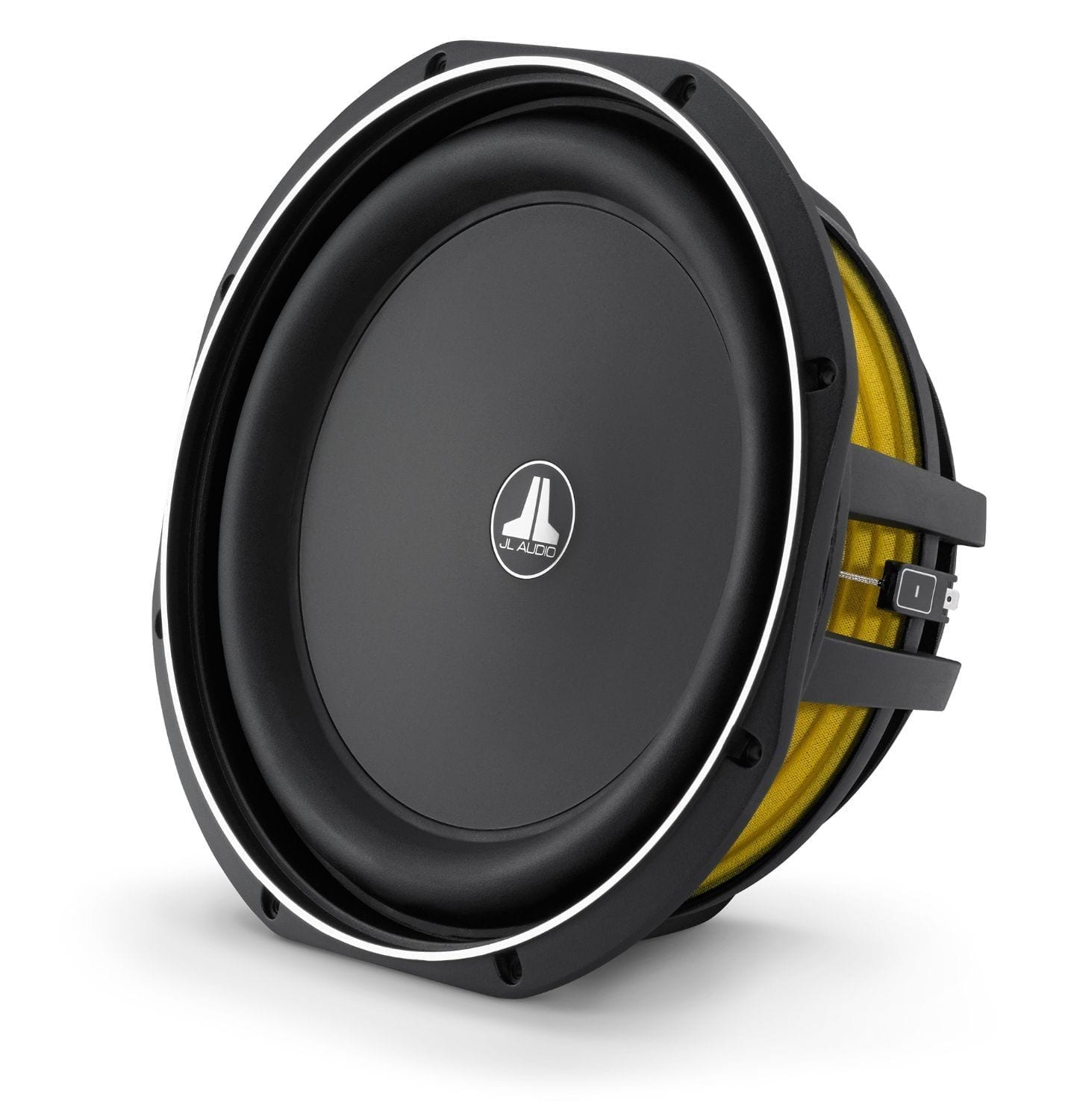

JL Audio 12TW1 -2/4
July 28, 2020

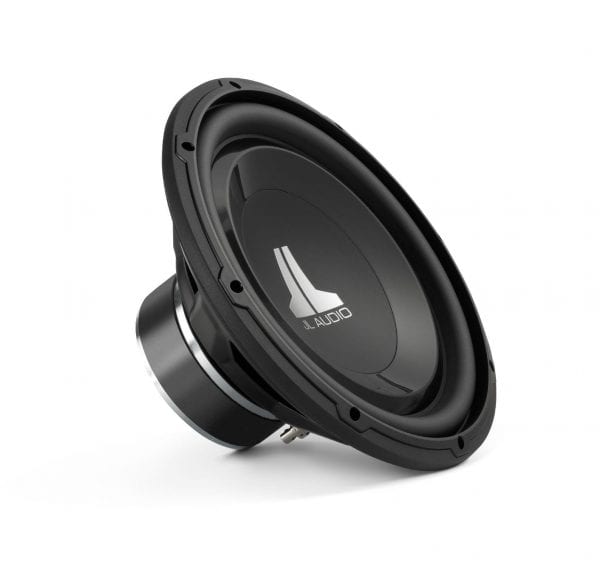

JL Audio 10W1v3-2/4
$1,671.00
10-inch Subwoofer (300 W, 4 Ω)
Also Available In 8″ – $850.00
| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 – 300 W |
| Nominal Impedance (Znom) | 4 Ω |
| Free Air Resonance (Fs) | 26.15 Hz |
| Electrical “Q” (Qes) | 0.475 |
| Mechanical “Q” (Qms) | 7.243 |
| Total Speaker “Q” (Qts) | 0.446 |
| Equivalent Compliance (Vas) | 1.533 cu ft / 43.41 L |
| One-Way Linear Excursion (Xmax)* | 0.45 in / 11 mm |
| Reference Efficiency (no) | 0.16% |
| Efficiency (1 W / 1 m)** | 84.2 dB SPL |
| Effective Piston Area (Sd) | 53.584 sq in / 0.0346 sq m |
| DC Resistance (Re) | 3.902 Ω |
