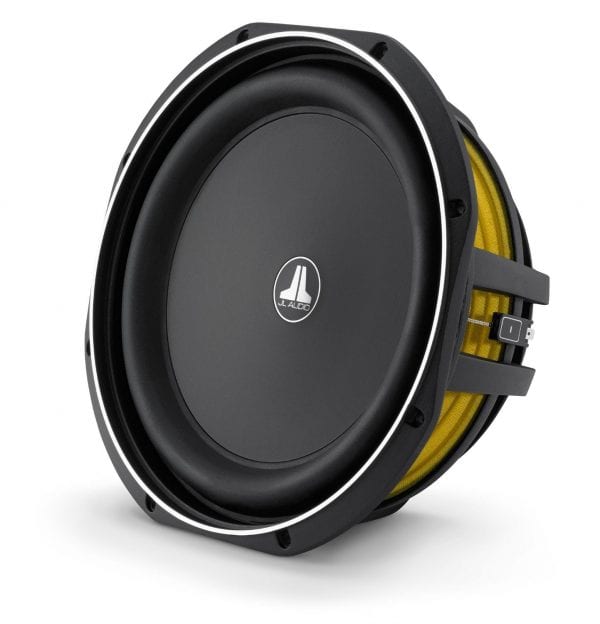

JL Audio 12TW1 -2/4
$1,688.00
12-inch Subwoofer (300W, 2&4 Ω)
Also Available in 10″ – $1560.00
| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 – 300 W |
| Nominal Impedance (Znom) | 2 Ω |
| Free Air Resonance (Fs) | 35.06 Hz |
| Electrical “Q” (Qes) | 0.61 |
| Mechanical “Q” (Qms) | 10.662 |
| Total Speaker “Q” (Qts) | 0.577 |
| Equivalent Compliance (Vas) | 1.008 cu ft / 28.54 L |
| One-Way Linear Excursion (Xmax)* | 0.40 in / 10.0 mm |
| Reference Efficiency (no) | |
| Efficiency (1 W / 1 m)** | 85.07 dB SPL |
| Effective Piston Area (Sd) | 67.608 sq in / 0.0436 sq m |
| DC Resistance (Re) | 2.430 Ω |
