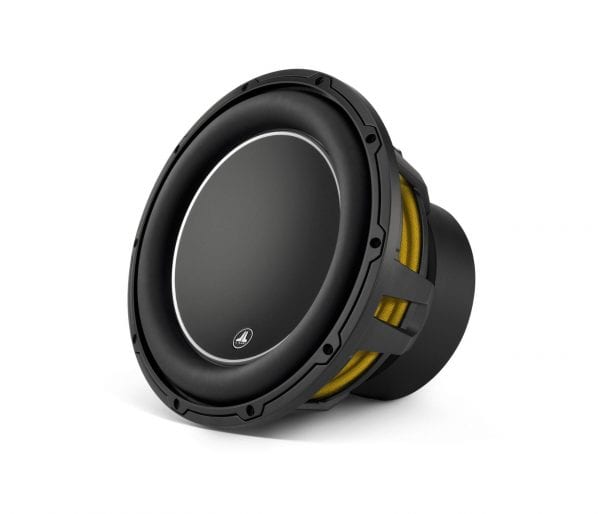

JL Audio 12W6v3-D4
$5,175.00
12″ Subwoofer (600 W, dual 4 Ω voice coils)
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 200 – 600 W |
| Nominal Impedance (Znom) | Dual 4 Ω |
| Free Air Resonance (Fs) | 26.919 Hz |
| Electrical “Q” (Qes) | 0.487 |
| Mechanical “Q” (Qms) | 9.365 |
| Total Speaker “Q” (Qts) | 0.463 |
| Equivalent Compliance (Vas) | 1.920 cu ft / 54.37 L |
| One-Way Linear Excursion (Xmax)* | 0.75 in / 19 mm |
| Reference Efficiency (no) | 0.11% |
| Efficiency (1 W / 1 m)** | 85.4 dB SPL |
| Effective Piston Area (Sd) | 75.338 sq in / 0.0486 sq m |
| DC Resistance (Re)*** | 6.493 Ω |
