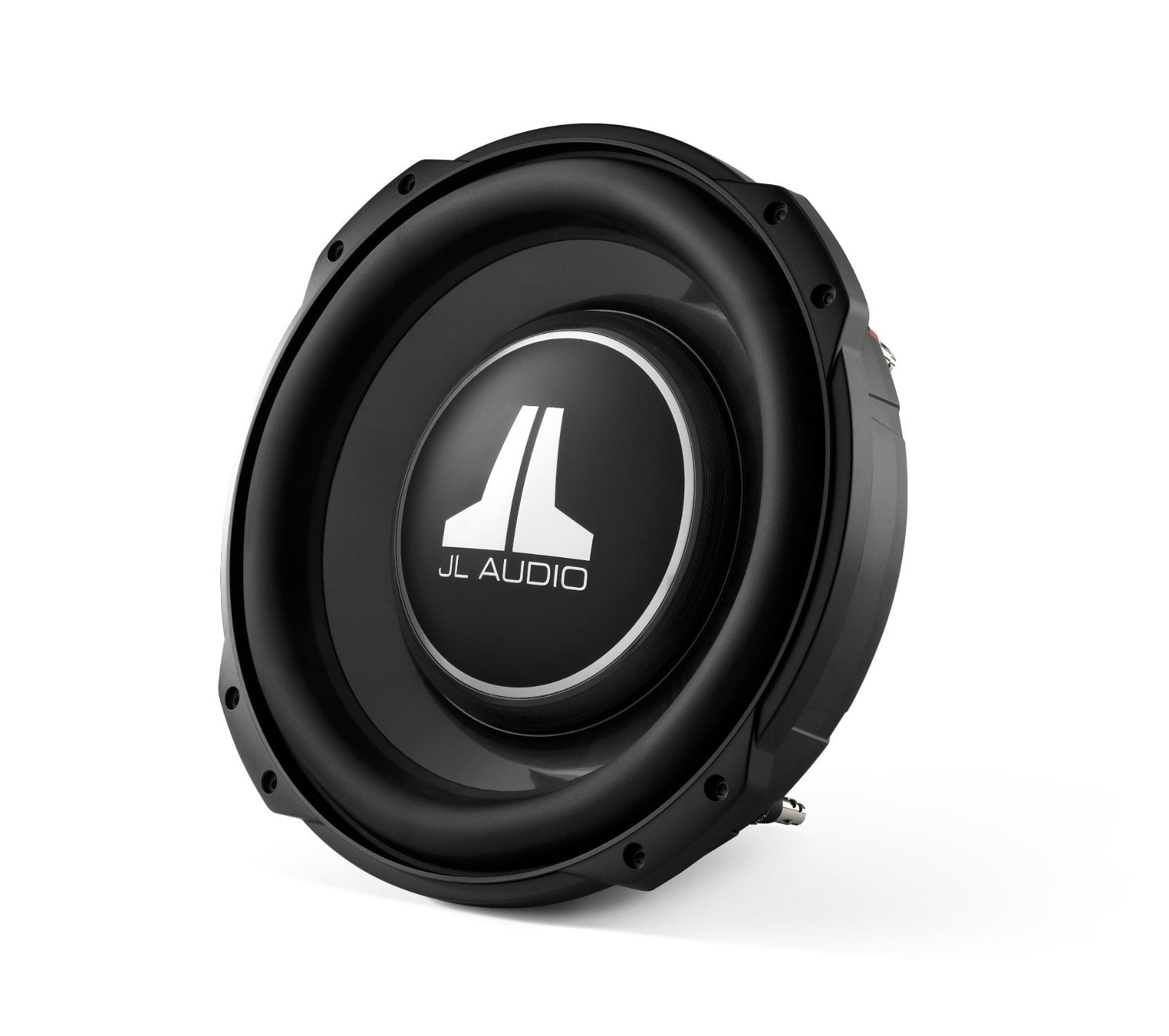

JL Audio 12TW3-D4
July 28, 2020

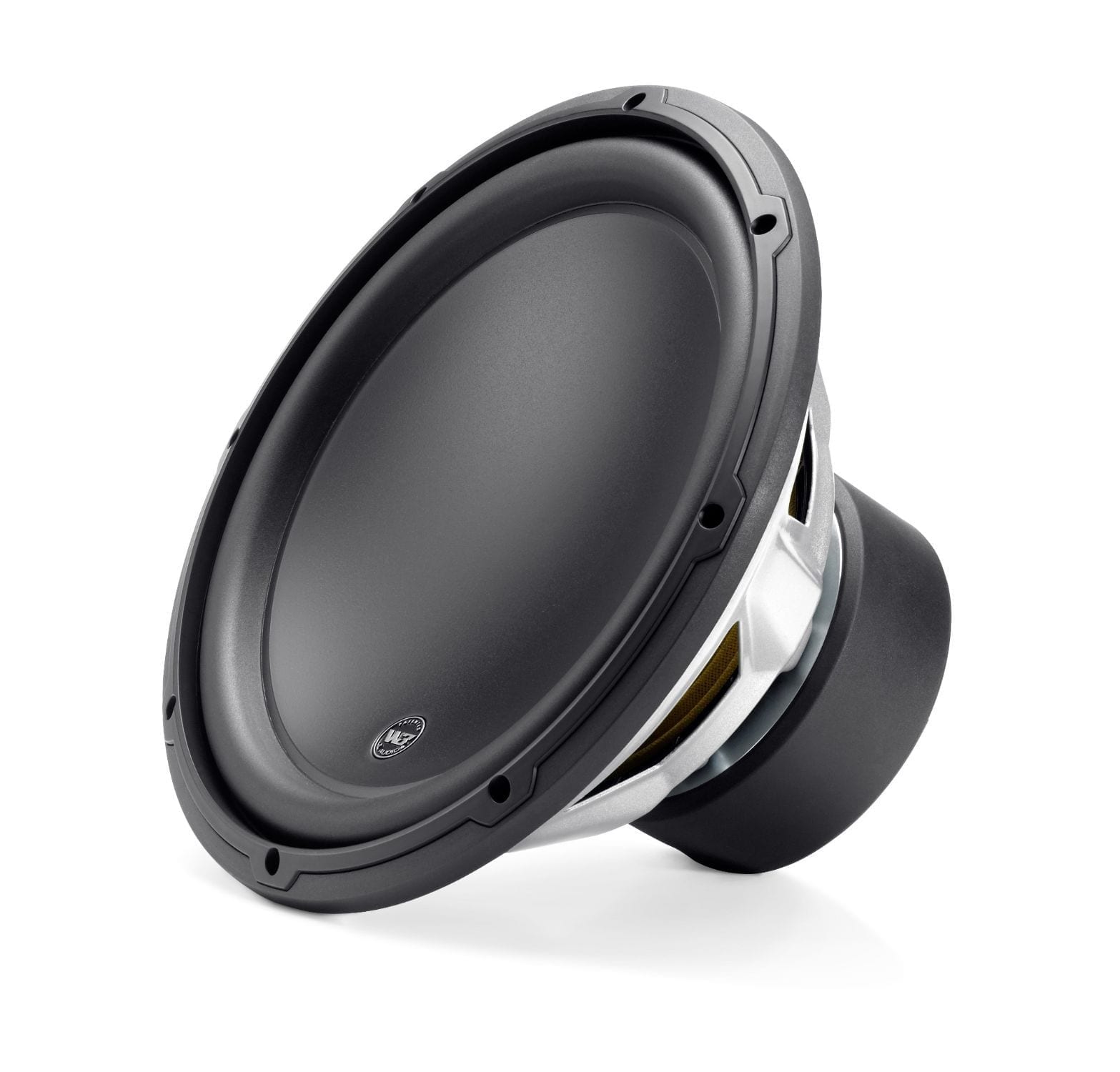

JL Audio 12W3v3
July 28, 2020

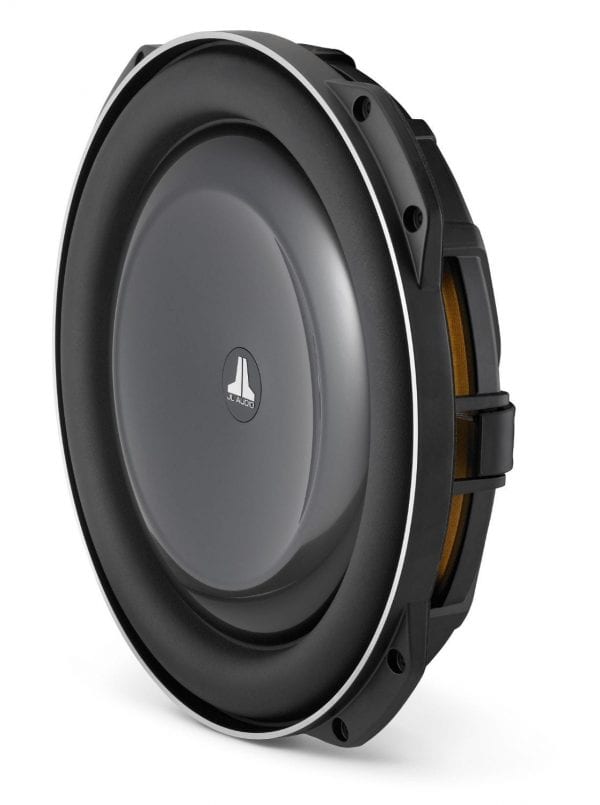

JL Audio 13TW5v2-2/4

$5,316.00

13.5″ Subwoofer (600 W, 2&4 Ω)



Category: Tags: ,
Continuous Power Handling (RMS) 600 W
Recommended Amplifier Power (RMS) 250 – 600 W
Nominal Impedance (Znom) 2 Ω
Free Air Resonance (Fs) 25.95 Hz
Electrical “Q” (Qes) 0.51
Mechanical “Q” (Qms) 10.648
Total Speaker “Q” (Qts) 0.479
Equivalent Compliance (Vas) 2.26 cu ft / 64.00 L
One-Way Linear Excursion (Xmax)* 0.433 in / 11 mm
Reference Efficiency (no) 0.23%
Efficiency (1 W / 1 m)** 85.51 dB SPL
Effective Piston Area (Sd) 98.26 sq in / 0.0634 sq m
DC Resistance (Re) 2.100 Ω
