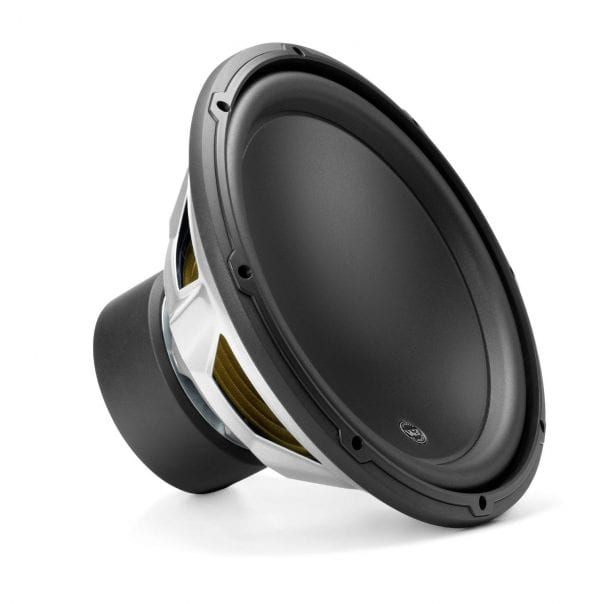

JL Audio 13W3v3
$1,890.00
13.5″ Subwoofer (600 W, 2&4 Ω)
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 150 – 600 W |
| Nominal Impedance (Znom) | 2 Ω |
| Free Air Resonance (Fs) | 24.70 Hz |
| Electrical “Q” (Qes) | 0.544 |
| Mechanical “Q” (Qms) | 6.936 |
| Total Speaker “Q” (Qts) | 0.504 |
| Equivalent Compliance (Vas) | 4.635 cu ft / 131.26 L |
| One-Way Linear Excursion (Xmax)* | 0.610 in / 15.5 mm |
| Reference Efficiency (no) | 0.35% |
| Efficiency (1 W / 1 m)** | 87.63 dB SPL |
| Effective Piston Area (Sd) | 103.850 sq in / 0.0670 sq m |
| DC Resistance (Re) | 1.659 Ω |
