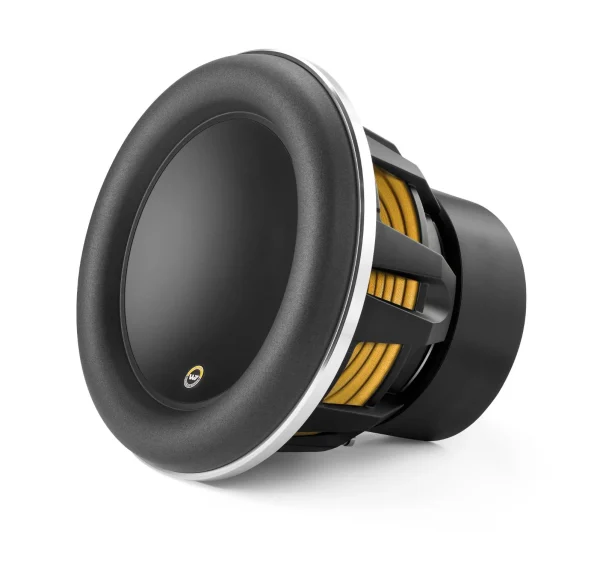

JL Audio 13W7AE-D1.5
Call for Price
13.5″ Subwoofer (1500 W, Dual 1.5 Ω voice coils)
| Continuous Power Handling (RMS) |
1500 W |
| Recommended Amplifier Power (RMS) |
500 – 1500 W |
| Nominal Impedance (Znom) |
Dual 1.5 Ω |
| Free Air Resonance (Fs) |
23.5 Hz |
| Electrical “Q” (Qes) |
0.476 |
| Mechanical “Q” (Qms) |
7.517 |
| Total Speaker “Q” (Qts) |
0.448 |
| Equivalent Compliance (Vas) |
3.68 cu ft / 104.3 L |
| One-Way Linear Excursion (Xmax)* |
1.25 in / 32 mm |
| Reference Efficiency (no) |
0.27% |
| Efficiency (1 W / 1 m)** |
86.3 dB SPL |
| Effective Piston Area (Sd) |
107.35 sq in / 0.0693 sq m |
| DC Resistance (Re)*** |
2.41 Ω |
