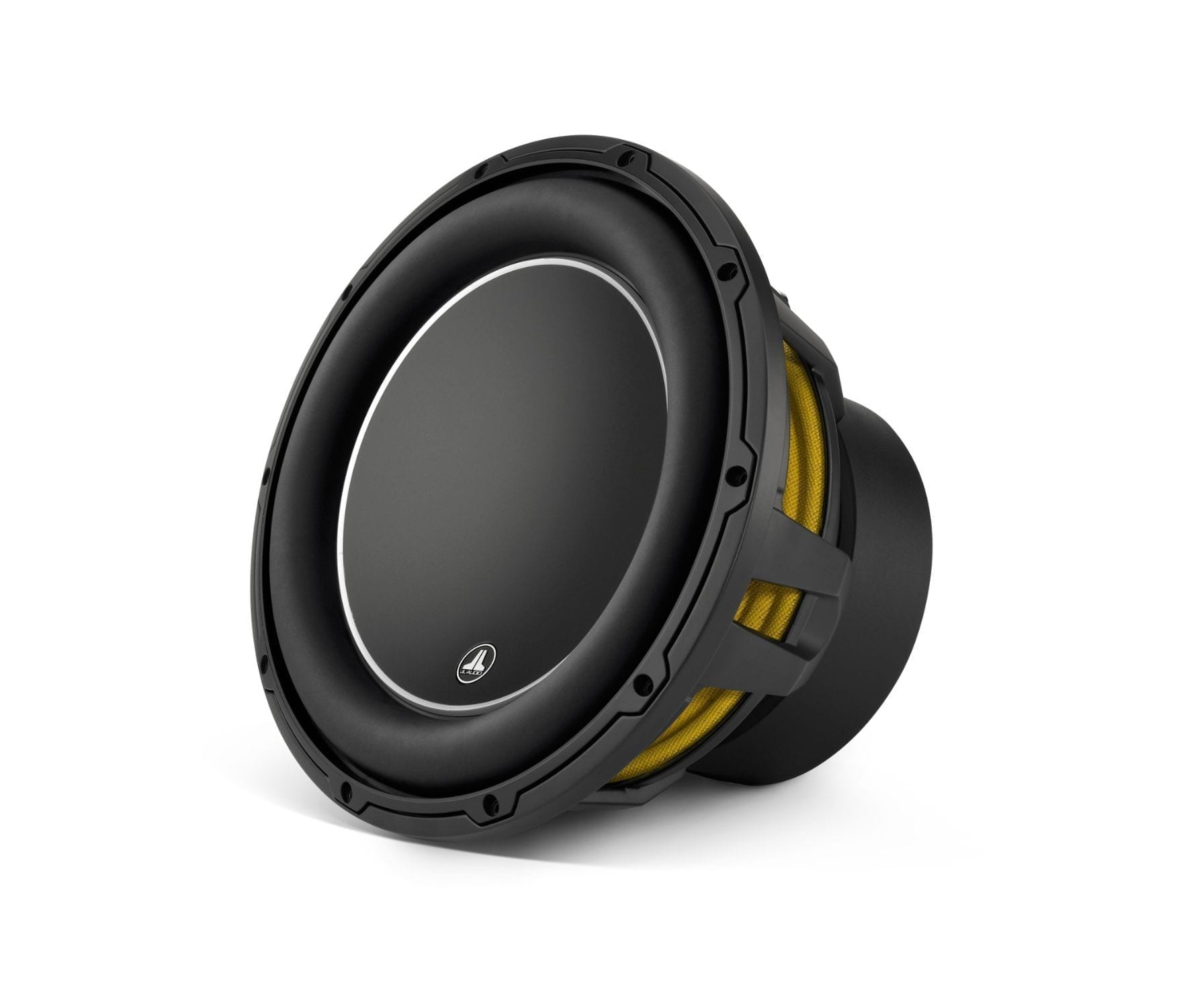

JL Audio 12W6v3-D4
July 28, 2020

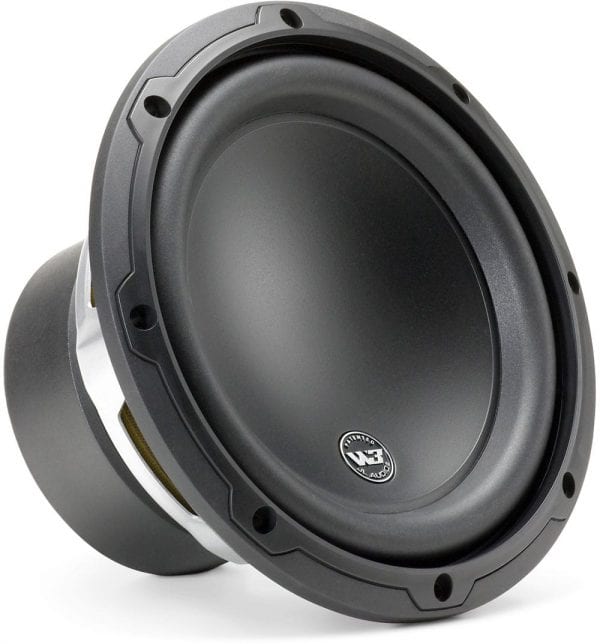

JL Audio 8W3v3
$1,862.00
8-inch Subwoofer (250 W, 4 Ω)
Also Available in 6″ – $1150.00
| Continuous Power Handling (RMS) | 250 W |
| Recommended Amplifier Power (RMS) | 75- 250 W |
| Nominal Impedance (Znom) | 4 Ω |
| Free Air Resonance (Fs) | 35.14 Hz |
| Electrical “Q” (Qes) | 0.501 |
| Mechanical “Q” (Qms) | 7.071 |
| Total Speaker “Q” (Qts) | 0.467 |
| Equivalent Compliance (Vas) | 0.54 cu ft / 15.29 L |
| One-Way Linear Excursion (Xmax)* | 0.375 in / 10.0 mm |
| Reference Efficiency (no) | 0.13% |
| Efficiency (1 W / 1 m)** | 83.24 dB SPL |
| Effective Piston Area (Sd) | 32.02 sq in / 0.021 sq m |
| DC Resistance (Re) | 3.77 Ω |
