JL Audio CP108LG-W3v3
July 28, 2020JL Audio ACP208LG-W3v3
July 28, 2020

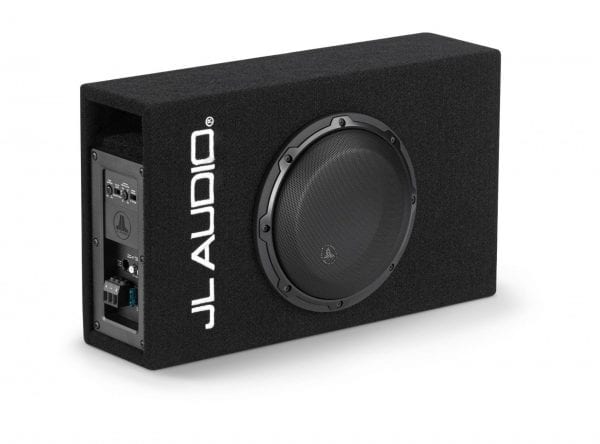

JL Audio ACP108LG-W3v3
$4,067.00
Single 8W3v3 MicroSub+™ with DCD™ Amplifier, Ported, 0.40 Ω
| Continuous Power Handling (RMS) |
Built-in amplifier 250 W @ 0.40 Ω |
| System Nominal Impedance |
0.40 Ω |
| Input Voltage Range @ RCA Inputs |
70 mV – 1.40 V RMS |
| Input Voltage Range @ High-Level Inputs |
280 mV – 5.4 V RMS |
| Recommended Copper Power / Ground Wire Gauge |
8 AWG wire |
| Fuse Rating |
30 A (ATO or ATC) |
| Enclosure Type |
Slot-ported, Low-profile |
| Finish |
Black carpet |
| Grille Included |
Black Steel Mesh |
| Filter Mode(s) |
Low-Pass only |
| Filter Slope(s) |
12 dB/octave |
| Filter Frequency Range |
50 Hz – 200 Hz |
| Output Polarity Switch |
Yes |
| Remote Subwoofer Level Control |
Optional (RBC-1) |
| External Width (W) |
18.5 in / 470 mm |
| External Height (H) |
11.125 in / 283 mm |
| External Depth (D1) |
5.125 in / 130 mm |
| Net Weight |
19.9 lb / 9.03 kg |
