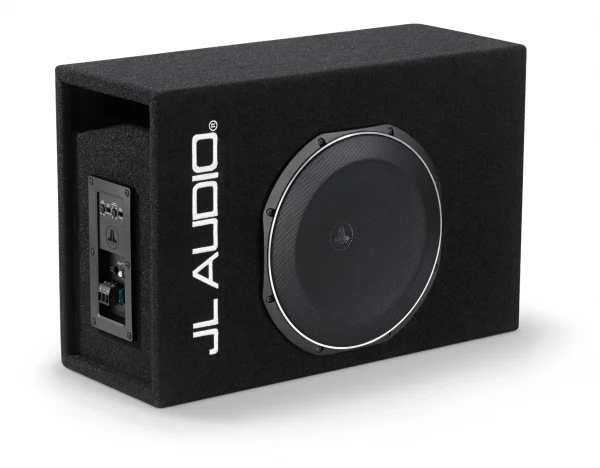

JL Audio ACP112LG-TW1
$5,068.00
12TW1 MicroSub+ with DCD Amplifier, Ported, 0.25 Ω
General Specifications:
| Continuous Power Handling (RMS) |
Built-in amplifier 400 W @ 0.25 Ω |
| System Nominal Impedance |
0.25 Ω |
| Input Voltage Range @ RCA Inputs |
70 mV – 1.40 V RMS |
| Input Voltage Range @ High-Level Inputs |
280 mV – 5.4 V RMS |
| Recommended Copper Power / Ground Wire Gauge |
8 AWG wire |
| Fuse Rating |
30 A (ATO or ATC) |
| Enclosure Type |
Slot-ported, Low-profile |
| Finish |
Black carpet |
| Grille Included |
Black Steel Mesh |
Signal Processing:
| Filter Mode(s) |
Low-Pass only |
| Filter Slope(s) |
12 dB/octave |
| Filter Frequency Range |
50 Hz – 200 Hz |
| Output Polarity Switch |
Yes |
| Remote Subwoofer Level Control |
Optional (RBC-1) |
Physical Specifications:
| External Width (W) |
23.75 in / 603 mm |
| External Height (H) |
15.75 in / 400 mm |
| External Depth (D) |
9.25 in / 235 mm |
| Net Weight |
40.4 lb / 18.33 kg |
