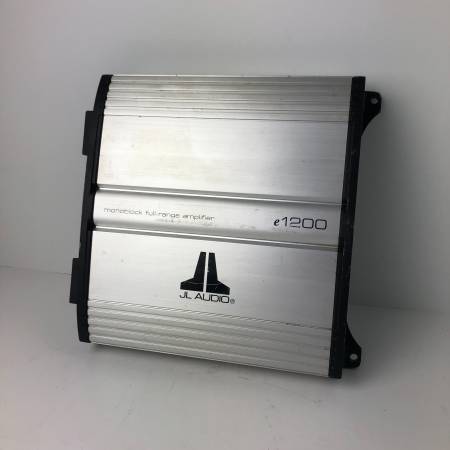

JL Audio E1200

Features:

• Patented Absolute Symmetry dual N-Channel MOSFET output design
• Pass-through RCA outputs
• State-variable, 12dB/Oct Butterworth crossover with continously variable cutoff frequency selection from 50 – 200Hz.
• Configurable as High or Low pass Filter
• High level inputs
• CEA-2006 Compliant
• RMS Power Rating:
  • 200 watts x 1 chan. at 2 Ohms
  • 120 watts x 1 chan. at 4 Ohms
• Frequency Response: 10Hz – 25kHz
• Damping Factor: >200 @ 4 Ohms / 50Hz
• Slew Rate: +- 22V/us
• Input Range: 200mV – 8V RMS
• Bass Boost: 0 – 6dB (0 – 18dB with Bass remote – Not Included)
• Dimensions: 9.8″ L x 9.25″ W x 2.36″ H
