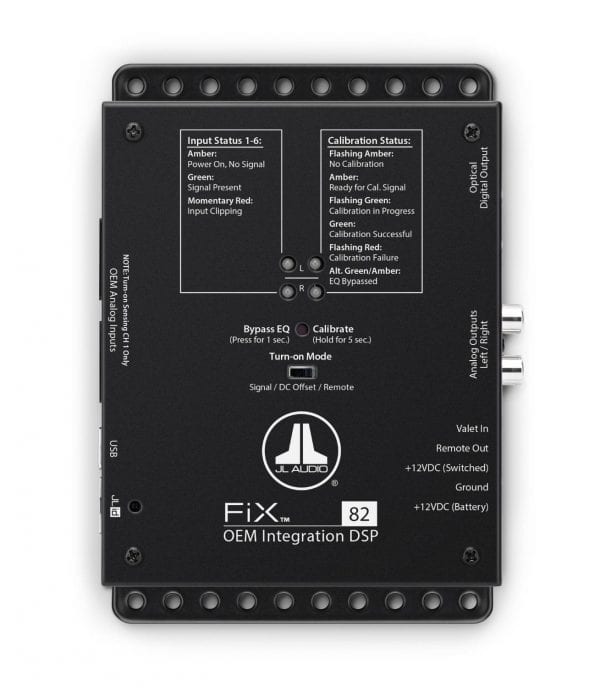

JL Audio FiX-82
$2,000.00
OEM Integration DSP with Automatic Time Correction and Digital EQ
| Power Supply Type | Regulated DC-DC SMPS |
| Input Operating Voltage | 10 – 16 VDC |
| Standby Current Draw | <1.5 mA |
| Operating Current Draw | 0.7 A |
| Recommended Fuse Value | 1 A |
| Input Channels | Eight |
| Input Type | Differential-Balanced |
| Input Voltage Range | 250 mV – 30 V RMS |
| Minimum Input Voltage | 10 mV RMS |
| Input Level Setting | Fully automatic |
| Output Channels | Two |
| Analog Output | Unbalanced, stereo RCA jacks |
| Digital Output | Optical (Toslink) output (S/PDIF) |
| Output Impedance | 450 Ω |
| S/N Ratio | 96 dB (A-Weighted, referred to 4V RMS Output) |
| THD+N @ Rated Output | 0.02% (20 Hz – 20 kHz) |
| Audio Resolution | 24 bit / 48 kHz |
| Number of EQ Bands | 30 x 2 channels |
| EQ Resolution | 1/3 octave (25 Hz – 20 kHz) |
| Remote Level Control | Optional (DRC-100) |
| Remote Level Functions | Master Volume Control, Handsfree Optimization, LED Status Reporting |
