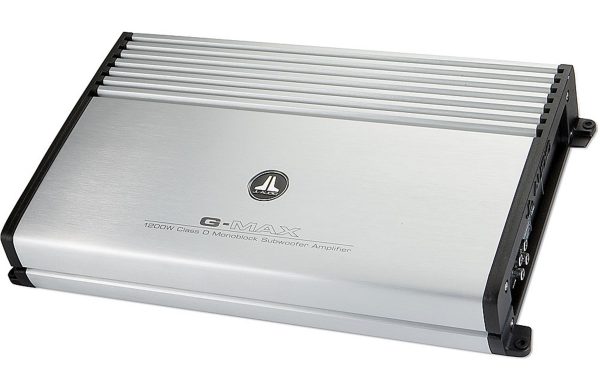

JL Audio G-Max

$2,000.00

Mono Block Amplifier 1200 Watts RMS 2 Ohms

Categories: , Tag:

Product highlights:

  • mono subwoofer amplifier
  • at 14.4 volts:
    • 600 watts RMS x 1 at 4 ohms (1,200 watts RMS x 1 at 2 ohms)
  • at 12.5 volts:
    • 450 watts RMS x 1 at 4 ohms (900 watts RMS x 1 at 2 ohms)
  • differential-balanced inputs
  • Advanced Rollback Protection System
  • frequency response: 10 Hz – 250 Hz
  • variable low-pass filter (40-200 Hz, 12 or 24 dB/octave)
  • switchable bass boost (0, 6 dB at 48 Hz)
  • optional wired remote control converts switchable bass boost to fully variable (0-12 dB)
  • Absolute Symmetry™ Class-D amplifier design
  • MOSFET power and output stages
  • preamp-level inputs
  • speaker-level input with optional converter
  • preamp outputs
  • 4-gauge power and ground leads and a 80-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 80-amp in-line fuse between the distribution block and the amplifier is recommended
  • 9-1/4″W x 2-1/2″H x 16-1/8″D
