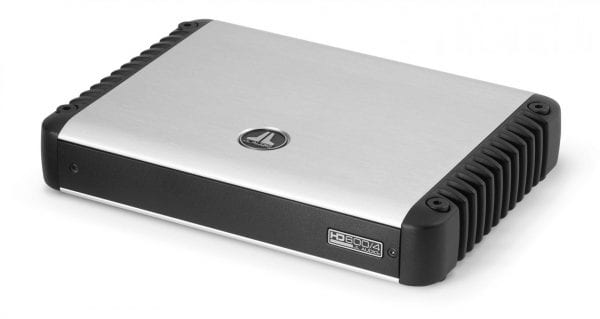

JL Audio HD600/4
Call for Price
4 Ch. Class D Full-Range Amplifier, 600 W
General Specifications
| Frequency Response | 6 Hz – 30 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >110 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >88.2 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >300 / 50 Hz |
| Damping Factor @ 2 Ω | >150 / 50 Hz |
| THD+N @ Rated Power | <0.03% @ 4 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV – 2 V RMS to 800 mV – 8 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 150 W RMS x 4 |
| @ 3 Ω | 150 W RMS x 4 |
| @ 2 Ω | 150 W RMS x 4 |
| @ 1.5 Ω | 150 W RMS x 4 |
| Bridged @ 8 Ω | 300 W RMS x 2 |
| Bridged @ 4 Ω | 300 W RMS x 2 |
