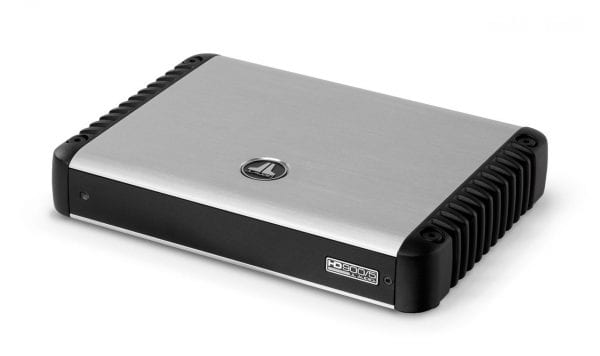

JL Audio HD900/5

Call for Price

5 Ch. Class D System Amplifier, 900 W



Category: Tags: ,
General Specifications
Frequency Response (Main Channels) 12 Hz – 28 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 12 Hz – 10 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >108.5 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Main Channels) >88.2 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >400 / 50 Hz
Damping Factor @ 2 Ω >200 / 50 Hz
THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
THD+N @ Rated Power (Subwoofer Channel) <0.05% @ 4 Ω
Input Voltage Range @ RCA Inputs Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge Accepts up to 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)
Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω 100 W RMS x 4
Main Channels @ 3 Ω 75 W RMS x 4
Main Channels @ 2 Ω 75 W RMS x 4
Main Channels @ 1.5 Ω 75 W RMS x 4
Main Channels – Bridged @ 8 Ω 200 W RMS x 2
Main Channels – Bridged @ 4 Ω 150 W RMS x 2
Subwoofer Channel @ 4 Ω 500 W RMS x 1
Subwoofer Channel @ 3 Ω 500 W RMS x 1
Subwoofer Channel @ 2 Ω 500 W RMS x 1
Subwoofer Channel @ 1.5 Ω 500 W RMS x 1
