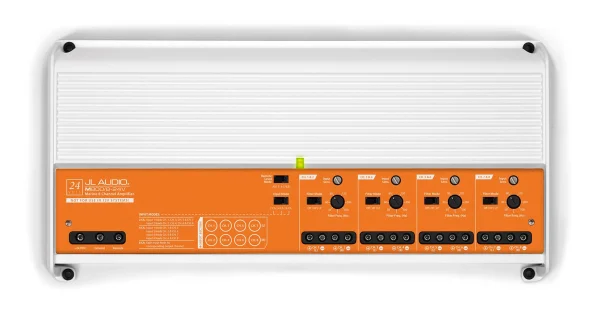

JL Audio M800/8-24V
$4,671.00
8 Ch. Class D Full-Range Marine Amplifier, 800 W, For 24V Systems
Specifications:
Rated Continuous (RMS) Power @ 28.8 V
| @ 4 Ω | 75 W RMS x 8 |
| @ 2 Ω | 100 W RMS x 8 |
| Bridged @ 4Ω | 200 W RMS x 4 |
Rated Continuous (RMS) Power @ 25 V
| @ 4 Ω | 60 W RMS x 8 |
| @ 2 Ω | 90 W RMS x 8 |
| Bridged @ 4Ω | 180 W RMS x 4 |
General Specifications
| Frequency Response | 12 Hz – 22 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 40 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s) | Low-Pass or High-Pass |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz – 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | Yes |
| Filter Defeat Function | Yes |
| Remote Level Control | Optional (HD-RLC) |
| Remote Level Modes | 2 or 4 or All Channels |
| Channel Input Mode Switch | Yes (2/4/6/8 ch.) |
| Pass-Through Preamp Output | None |
| Source Channel Selection for PreOuts | N/A |
Physical Specifications
| Height (H) | 2.05 in / 52 mm |
| Width (W) | 14.73 in / 374 mm |
| Depth (D) | 7.09 in / 180 mm |
