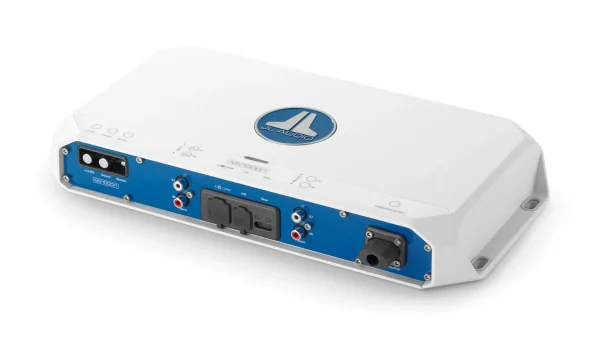

JL Audio MV1000/1

Call for Price

Monoblock Class D Marine Subwoofer Amplifier, 1000 W

Category: Tag:
Specifications:
Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 600 W RMS x 1
@ 3 Ω 800 W RMS x 1
@ 2 Ω 1000 W RMS x 1
@ 1.5 Ω N/A
General Specifications
Frequency Response 12 Hz – 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs) 87 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs) 60 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >400 / 50 Hz
Damping Factor @ 2 Ω >300 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 250 mV – 8 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 80 A (AFS, AGU or MaxiFuse™)
IP Rating IPX2 (when mounted vertically with connections pointed downward)

Features:

Simple Setup via PC, Tablet or Smartphone

  • TüN™ Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN™ software is available for computers and most handheld devices.

2nd-Gen NexD2™ Switching Amplifier Technology

  • Advanced, high-speed switching technology delivers superb low frequency power and efficiency.
  • Latest generation of DirectFET® MOSFET Output Devices.
  • Specially optimized for subwoofer applications.

Ultra-Versatile Analog and Digital Inputs/Outputs


  • Differential-Balanced Analog Inputs accept a wide range of signals levels (up to 8V RMS), offering outstanding noise rejection for clean, clear audio.
  • Analog, Pass-Through Pre-Outs (4V RMS)

JLid™ System Command and Control with Networking Capabilities

  • Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid™ accessories, including:

VXi-BTC Bluetooth® Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS® or Android® device.

M-DRC-50 or DRC Controllers: Wired remotes offer preset selection and adjustments of levels, fader and balance from the helm or driver’s seat. (Connectivity/functionality varies by model.)
MVi-HUB JLid-COMM and Network Hub: Provides network connectivity for up to six MVi amplifiers (one master and five slave amplifiers) for full-system DRC control and Preset selection.
