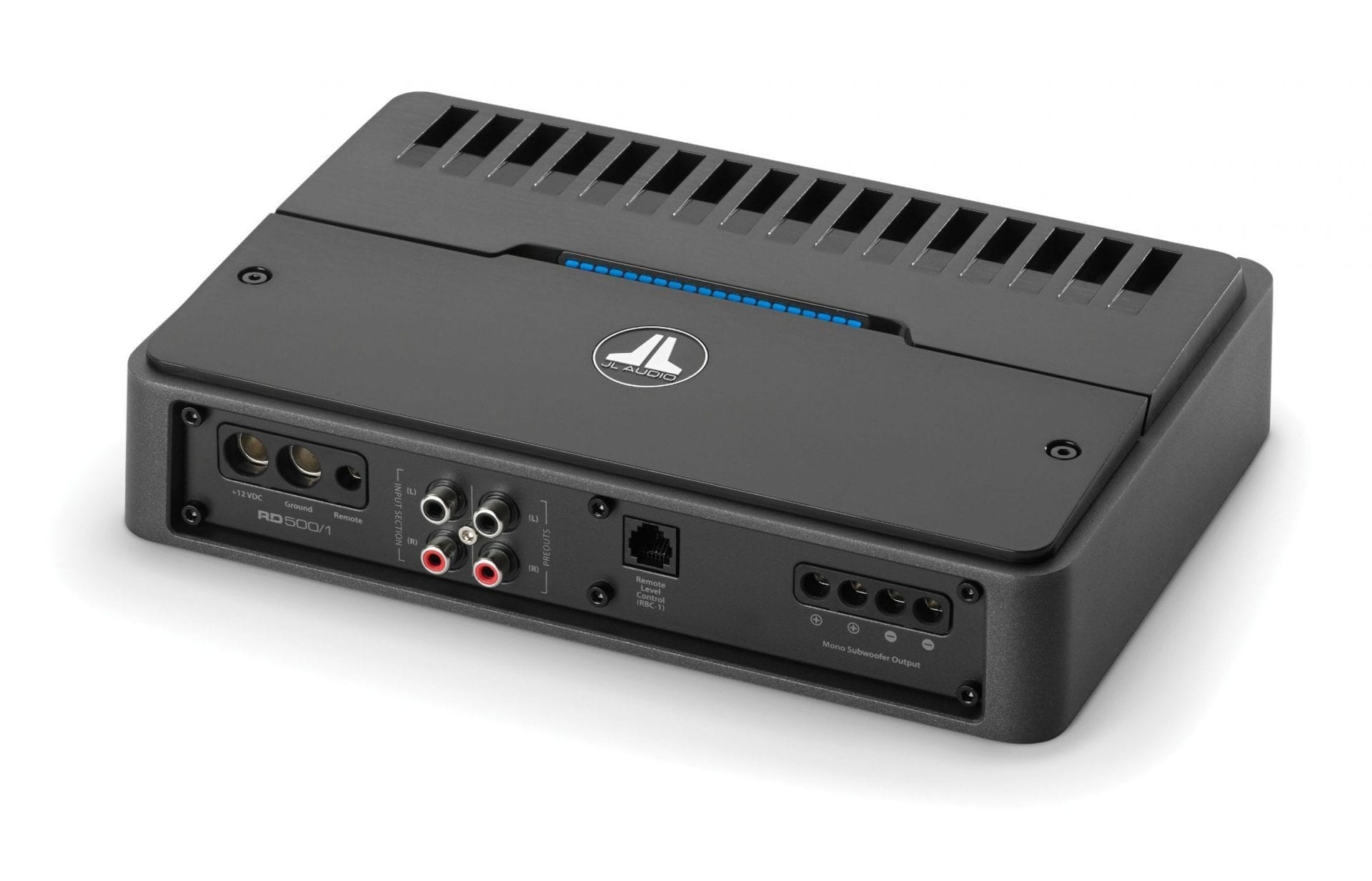

JL Audio RD500/1 Out of Stock
July 7, 2020

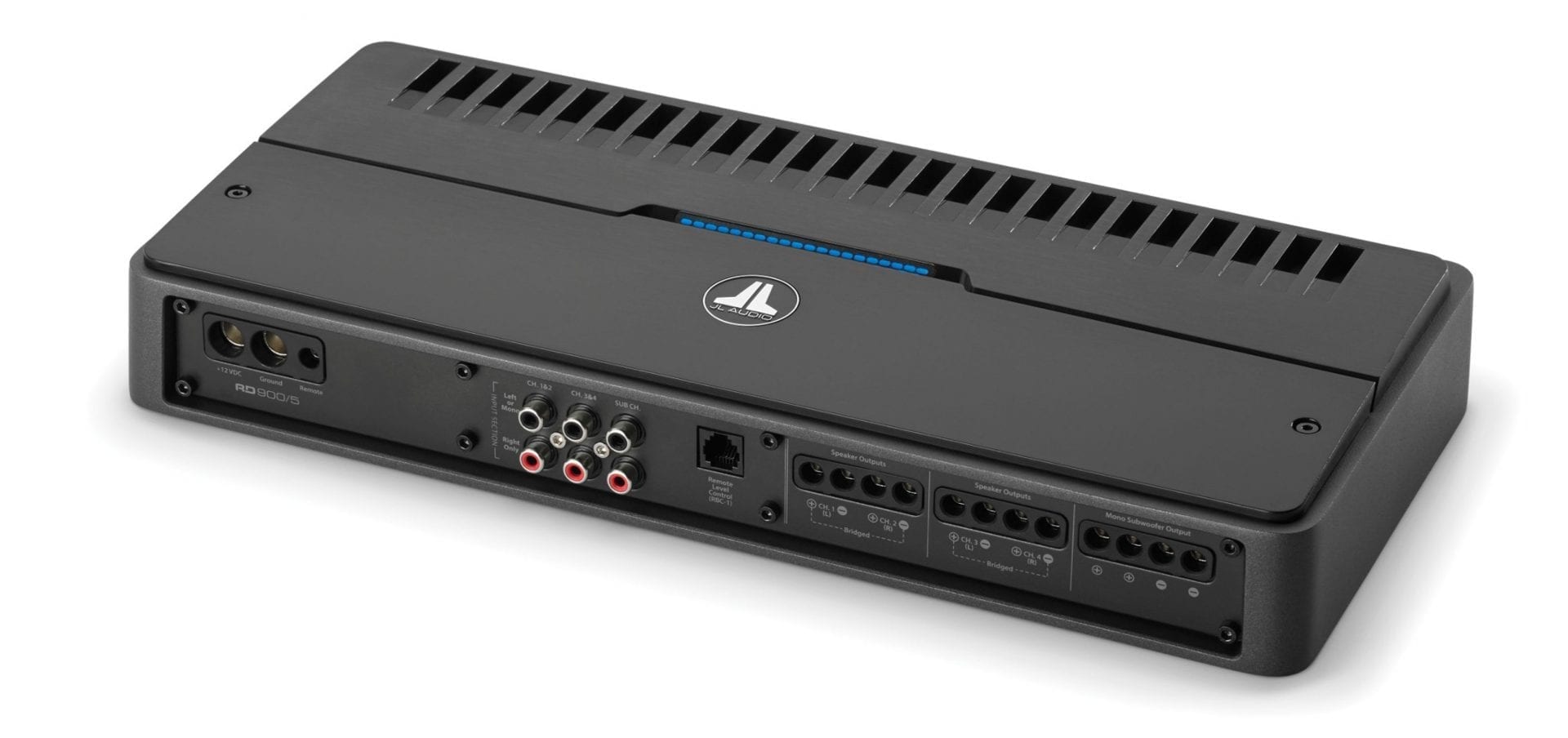

JL Audio RD900/5
July 7, 2020

JL Audio RD400/4

$2,745.00

4-Channel Class D Full-Range Amplifier



Category: Tags: ,
General Specifications
Frequency Response 12 Hz – 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 40 A (AFS, AGU or MaxiFuse™)
Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 75 W RMS x 4
@ 2 Ω 100 W RMS x 4
Bridged @ 4Ω 200 W RMS x 2
