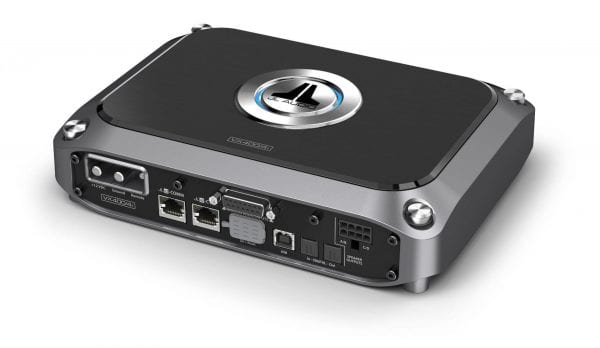

JL Audio VX400/4i
Call for Price
4 Ch. Class D Full-Range Amplifier with Integrated DSP, 400 W
General Specifications
| Frequency Response | 12 Hz – 24 kHz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Analog Inputs) |
99 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Analog Inputs) |
80 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to highest rated power (Digital Inputs) |
101 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W (Digital Inputs) |
81 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >100 / 50 Hz |
| Damping Factor @ 2 Ω | >50 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | 200 mV – 16 V RMS |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 40 A (AFS, AGU or MaxiFuse™) |
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 75 W RMS x 4 |
| @ 2 Ω | 100 W RMS x 4 |
| Bridged @ 4Ω | 200 W RMS x 2 |
