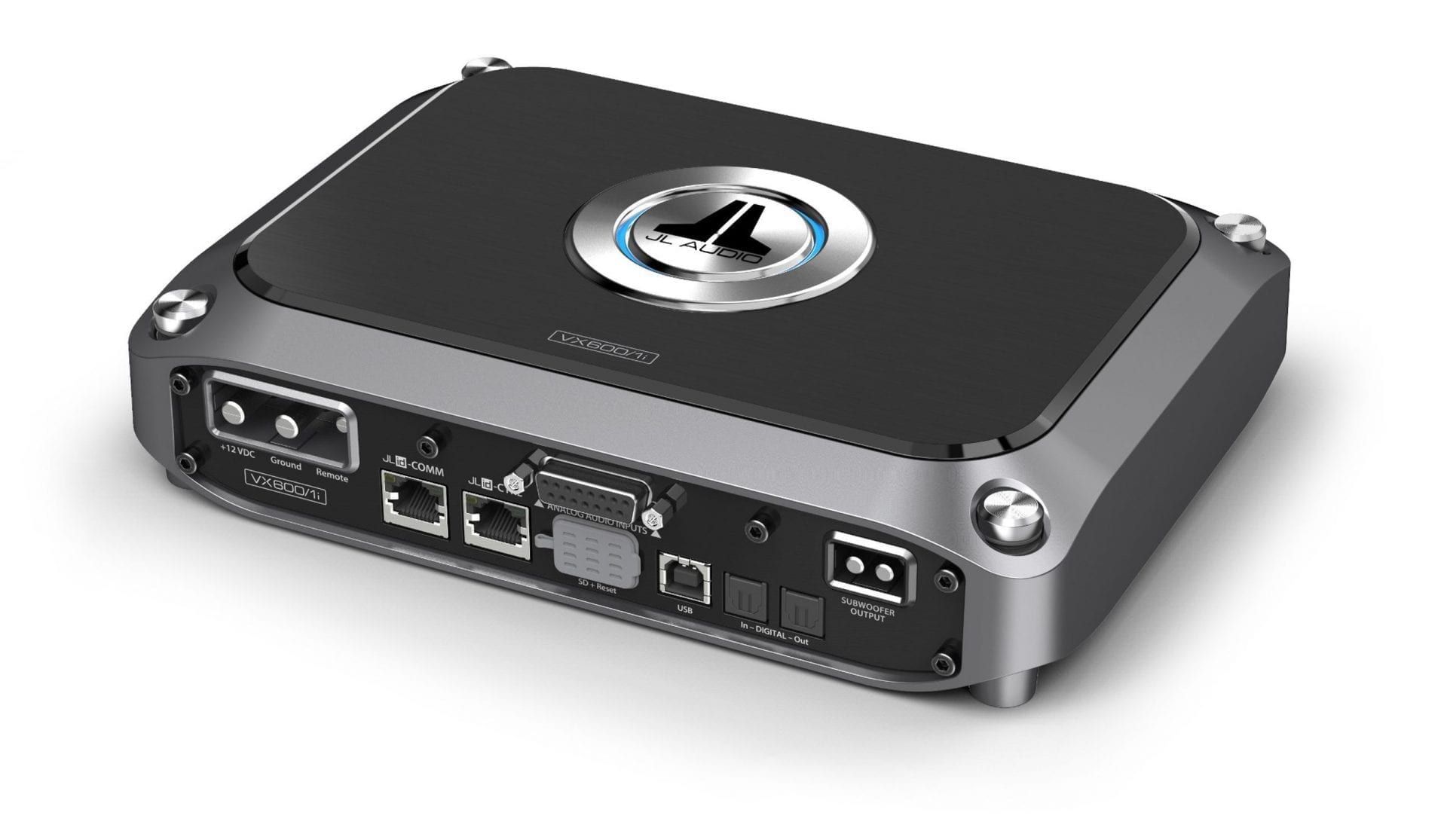

JL Audio VX600/1i
July 7, 2020
JL Audio VX1000/5i
July 7, 2020

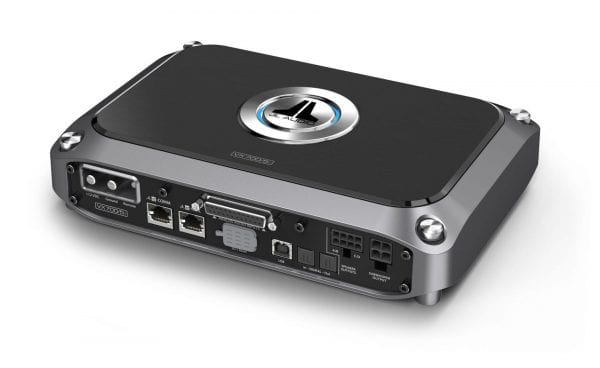

JL Audio VX700/5i

Call for Price

5 Ch. Class D System Amplifier with Integrated DSP, 700 W



Category: Tags: ,
General Specifications
Frequency Response (Main Channels) 12 Hz – 24 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 12 Hz – 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs – Main Channels) 99 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Analog Inputs – Subwoofer Channel) 99 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs – Main Channels) 80 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs – Subwoofer Channel) 72 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs – Main Channels) 101 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs – Subwoofer Channel) 102 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs – Main Channels) 82 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs – Subwoofer Channel) 80 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >50 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV – 16 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)
Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω 75 W RMS x 4
Main Channels @ 2 Ω 100 W RMS x 4
Main Channels – Bridged @ 4Ω 200 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
