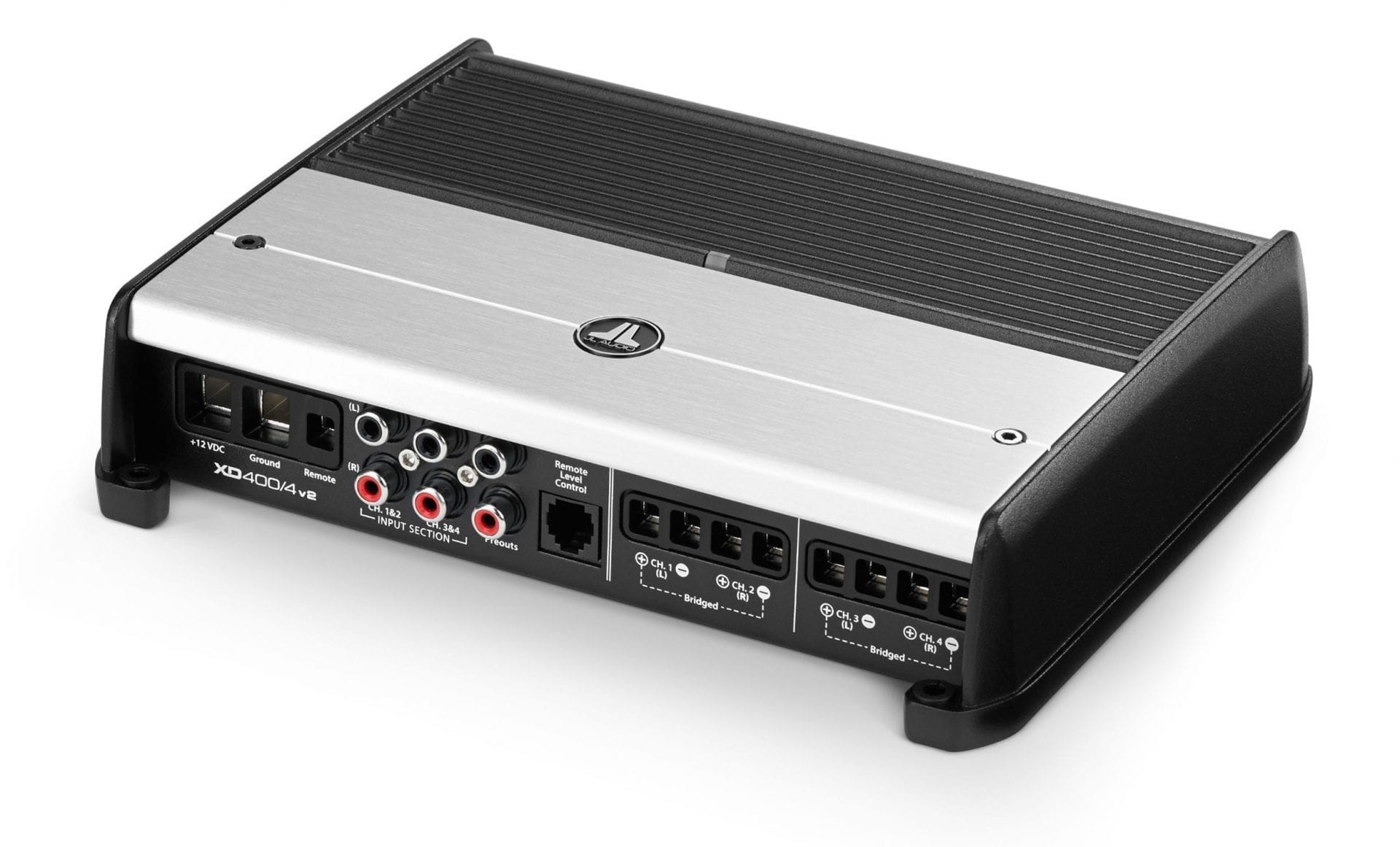

JL Audio XD400/4v2
July 7, 2020

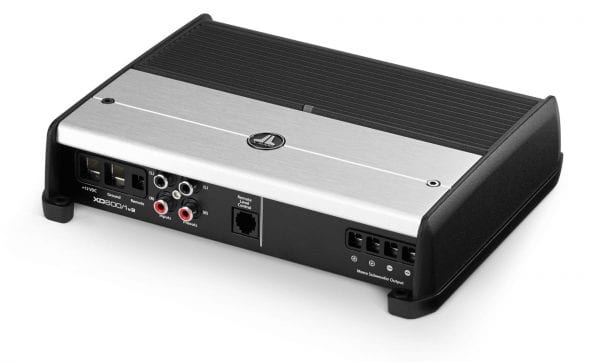

JL Audio XD600/1v2
$3,173.00
Monoblock Class D Subwoofer Amplifier – 600 W
Also Available:
JL Audio XD300/1v2 – $2520.00
JL Audio XD1000/1v2 – $4295.00
General Specifications
| Frequency Response | 7 Hz – 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >87 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >67 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >1000 / 50 Hz |
| Damping Factor @ 2 Ω | >500 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
Rated Continuous (RMS) Power @ 14.4 V
| @ 4 Ω | 400 W RMS x 1 |
| @ 3 Ω | 500 W RMS x 1 |
| @ 2 Ω | 600 W RMS x 1 |
