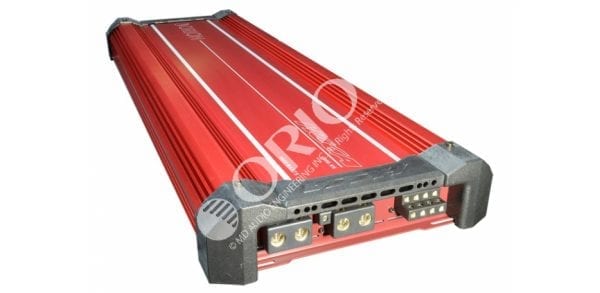

Orion HCCA4000.4H

Call For Price

4-CHANNEL CLASS A/B AMPLIFIER 4000 WATTS RMS



Category: Tags: , ,

Power Ratings:

– RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 600W
– RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 1000W
– RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 2000W

Power Terminal Management
Positive Terminals: 1 x 0 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 10 AWG.
Speaker Output Terminals: 10 AWG.

Specifications:

– Frequency Response 10Hz to 35kHz +/- 1 dB
– Linear Bandwidth 20Hz to 65kHz +/- 3 dB
– High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
– Low Pass Crossover Continuously variable (40-300Hz)
– Phase shift control 0 to 180
– Bass Boost 0-18dB variable
– Distortion at Rated Power 0.005% THD+N
– Damping Factor > 100
– Input Sensitivity(RMS) 200mV to 6V
– Supply Voltage Range 9 to 16V
– Input Impedance 20K Ohms
– Amplifier Efficiency > 67% into 2 Ohms load at max. power
– SNR at rated output power and lowest impedance > 95dB
– Fuses: 350A recommended (not included)
– Dimensions (L x W x H): 27.95″ x 11.89″ x 3.15″ (710x302x80mm)
