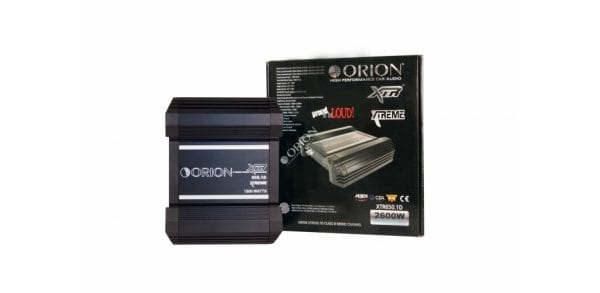

Orion XTR650.1

$1,850.00

CLASS D MONO CHANNEL 650 WATTS RMS



Category: Tags: , ,

Power Rating:

– RMS Power @ 4 Ohms @ 0.5% THD+N: 275W
– RMS Power @ 2 Ohms @ 0.5% THD+N: 450W
– RMS Power @ 1 Ohm @ 0.5% THD+N: 650W

Power Terminal Management
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 12 AWG.
Speaker Output Terminals: 12 AWG.

Specifications:

– Frequency Response: 15Hz – 250Hz
– Linear Bandwidth 15Hz to 250Hz +/- 3 dB
– Low Pass Crossover: 30Hz – 300Hz
– Supply Voltage: 9 – 16V
– Amplifier Efficiency: >80%
– Damping Factor: 200dB
– Signal to Noise Ratio: >90dB
– T.H.D. & Noise: 0.5%
– Phase Shift: 0 – 180
– Bass Boost: 0-18dB Variable
– Subsonic Filter: 10 – 25Hz
– Variable Input Level Control: 0.2V – 6.0V
– Fuses: **A recommended (* x **A ATC Fuses)
– Dimensions (L x W x H): 7.1″ x 9.25″ x 2.75″ (180x235x70mm)
