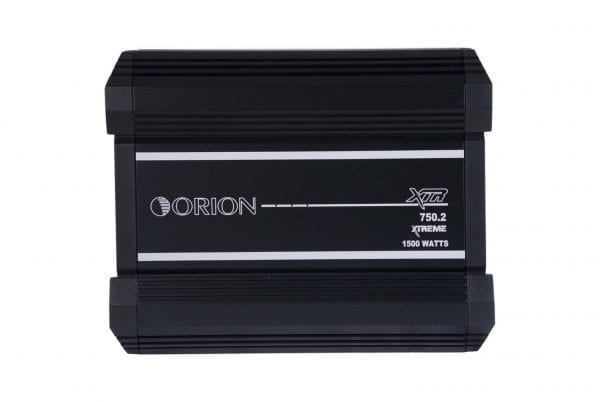

Orion XTR 750.2 – Out of Stock
2 CHANNEL AMPLIFIER 750 WATTS RMS
Specifications:
- RMS Power Rating 4 Ohms: 225 watts x 2 chan.
- RMS Power Rating 2 Ohms: 375 watts x 2 chan.
- RMS Power Rating Bridged, 4 Ohms: 750 watts x 1 chan.
- Nominal power output: 1500 watts
- Max power output: 3000 watts
- Fuses: 2 x 40A
- MOSFET Power supply and output stage
- Power and protection LED Indicators
- Remote gain control
- Gain control continuously adjusts for full power output
- IntelliQ Bass optimization circuit
- Low-level RCA Inputs
- Accepts high-level speaker inputs from an OEM stereo
- Thermal, DC offset, short protection and under-voltage protection
- 3/2/1 Channel operation
- X-Over (crossover) activates the low-pass, FLAT and high-pass crossovers
- X-Over frequency control adjusts the frequency for the high- and low-pass filters
- Silver-plated RCA level inputs
- Silver-plated screw terminals
- Variable high-pass filter (50-2,000 Hz, 12 dB/octave)
- Variable Low-pass filter (50-2,000 Hz, 12 dB/octave)
- Subsonic Filter (12 dB at 24 Hz)
- Frequency response: 20-20,000 Hz
- CEA-2006 compliant amplifier
- Dimensions: 9.3″W x 2.5″H x 11.5″L
