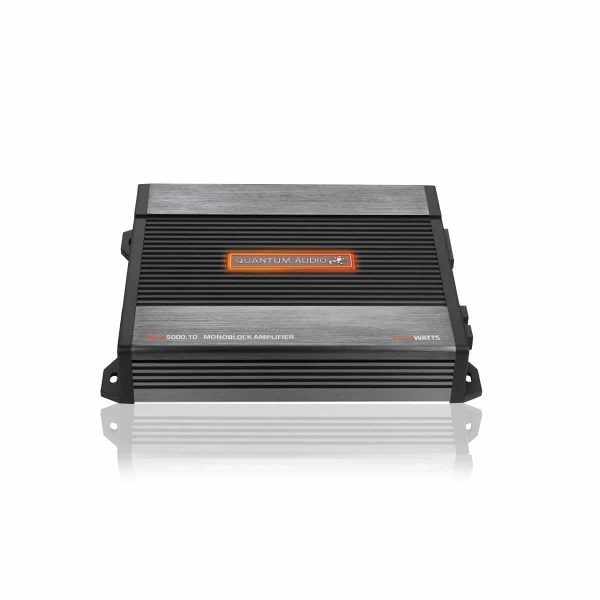

Quantum QPX5000.1D
$1,840.00
5000W Max Class-D Monoblock
Features:
- Class D Monoblock Amplifier
- 1 Ohm Stable capability
- Amber-Glow Logo Badge
- Audiophile Grade Components
- Speaker Short Circuit Protection
- High Efficiency Mosfet Design
- 12 dB Variable Low Pass X-over
- 12 dB Variable Bass Boost
- 12 dB Variable Subsonic Filter 15Hz – 55Hz
- Variable Phase Shift
- Double Sided PCB
- Q Link Master/ Slave Technology @ 2 Ohm
- Bass Remote Included
| GENERAL SPECIFICATIONS |
| Rated Power @ 14.4 Volts |
|
| Dynamic Power Handling |
1 X 2500 Watts @ 1Ω Mono |
| Dynamic Power Handling |
1 x 1250 Watts @ 2Ω Mono |
|
|
|
|
| PARAMETERS |
| Signal to Noise ratio: |
>90dB |
| Variable Subsonic Filter: |
15Hz – 55Hz |
| Low Pass Crossover: |
25Hz-250Hz |
| Bass Boost @ 45Hz: |
0-12db |
| Phase Shift Control: |
0-180 degree |
| THD at Rated Power: |
1 % <0.1% |
| Input Sensitivity: |
200mV-6V |
| Frequency Response |
10Hz – 220Hz |
| Length (A) |
11″ / (280mm) |
| Width (B) |
8.6″ / (220mm) |
| Height (C) |
1.96″ / (50mm) |
