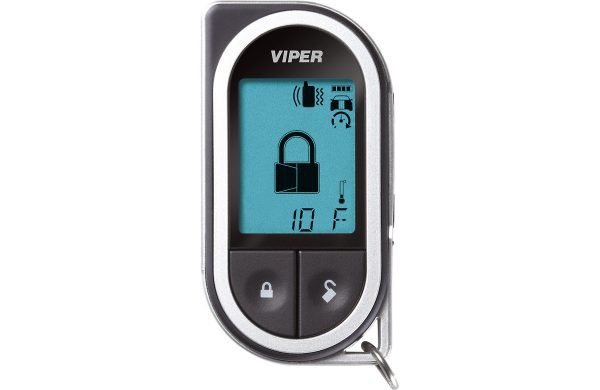

Overview: The 7752V Responder LC3 SST SuperCode LCD Remote Control is a 5-button, two-way transmitter for use with select Viper Car Security Systems, including the 5704V, 5501, 5901, and 5902.
LCD: The 7752V features a 7/8″ wide x 1-1/8″ high LCD screen to indicate the security system’s status, and to give you visual feedback of the cause of an alert. The upper portion of the screen displays the status icons for the System, Siren, Alarm Zones, Remote Start, and Remote Control. The lower section of the display is a text field that shows the Clock, Runtime or Temperature during Remote Start, as well as Command confirmations, Page messages, and Programming menus.
Button Configuration: The 7752V transmitter has separate lock/arm and unlock/disarm buttons on the front panel. Three other buttons are located on the right side: Auxiliary, Remote Start, and Function. The Function button is used to access function levels for commands, configuration menus for programming, Car selection, and to request reports.
Rechargeable Battery: The 7752V is powered by a built-in rechargeable battery. A mini-USB port on the side is provided for connecting the AC adapter (supplied with the alarm system). The battery level can be checked on the LCD screen at any time. The built-in battery is not user-replaceable.
